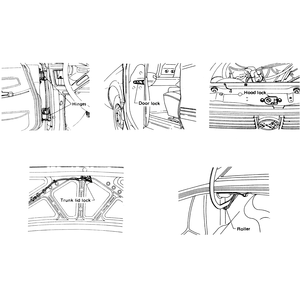

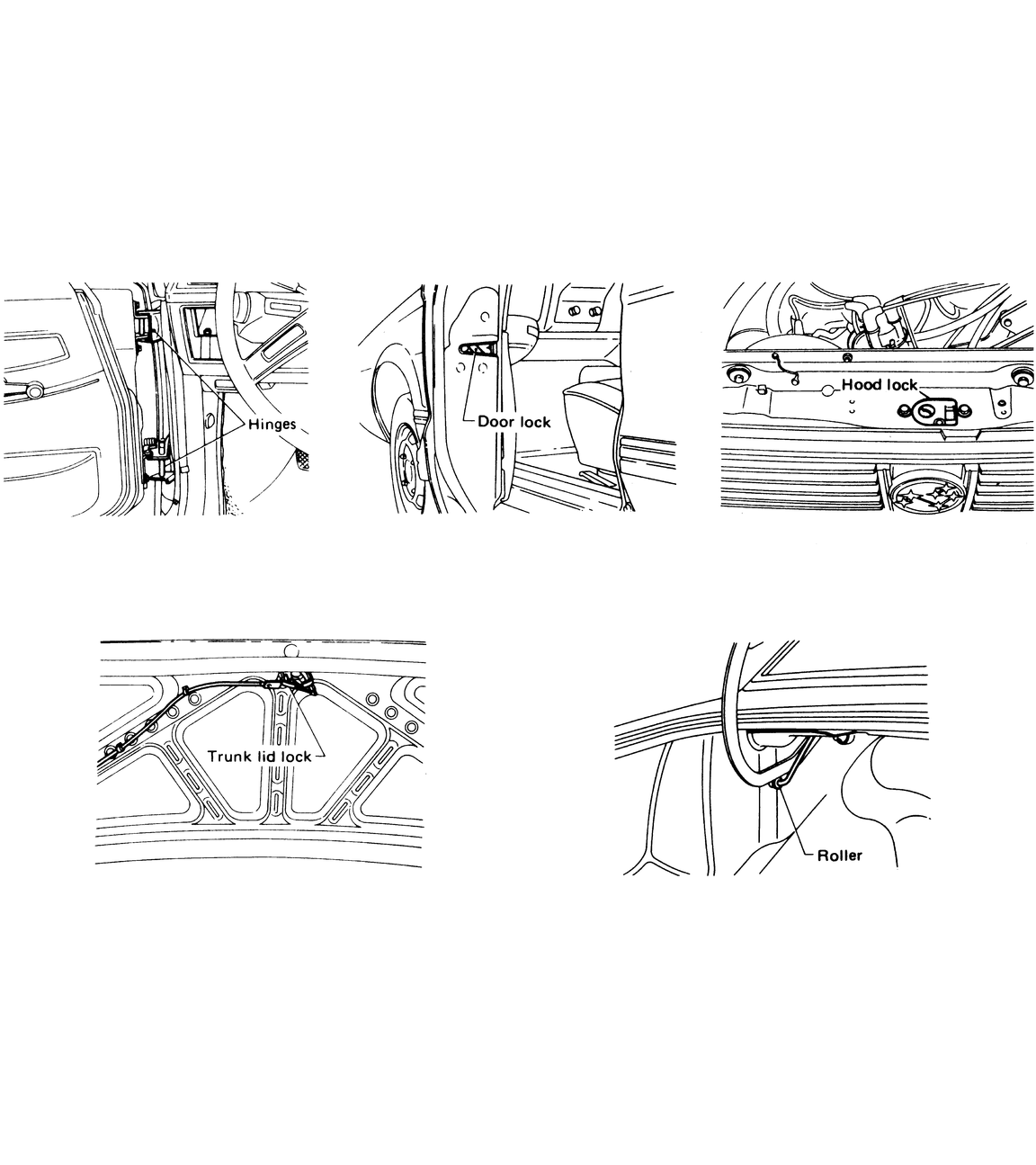

| Fig. 2: Body lubrication points
|
Body lubrication should be performed at regularly scheduled intervals.
Apply multipurpose chassis grease to the following areas:
Use grease sparingly on the door and trunk strikers, as they may come into contact with clothing.
Use powdered graphite to lubricate the following items:
Do not use oil or grease to lubricate the insides of lock cylinders.
Use silicone lubricant to preserve the rubber weather stripping around the doors and trunk.
