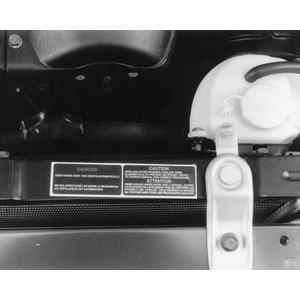

| Fig. 5: Read all warning labels on the radiator . .
.
|

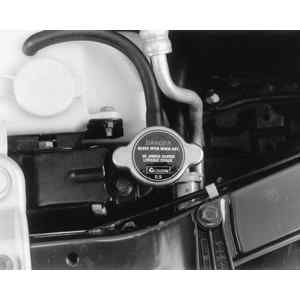

| Fig. 6: . . . and radiator cap
|

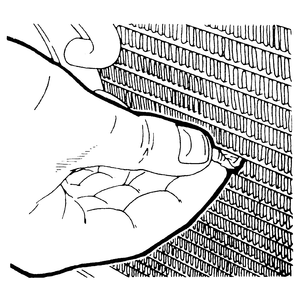

| Fig. 7: Periodically remove all debris from the radiator
fins
|
A complete cooling system check should be performed and the antifreeze replaced at 30,000 mile (48,300 km) intervals.

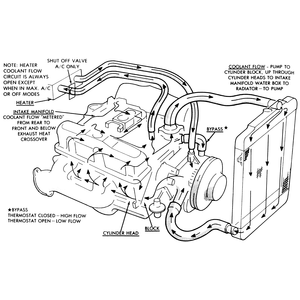

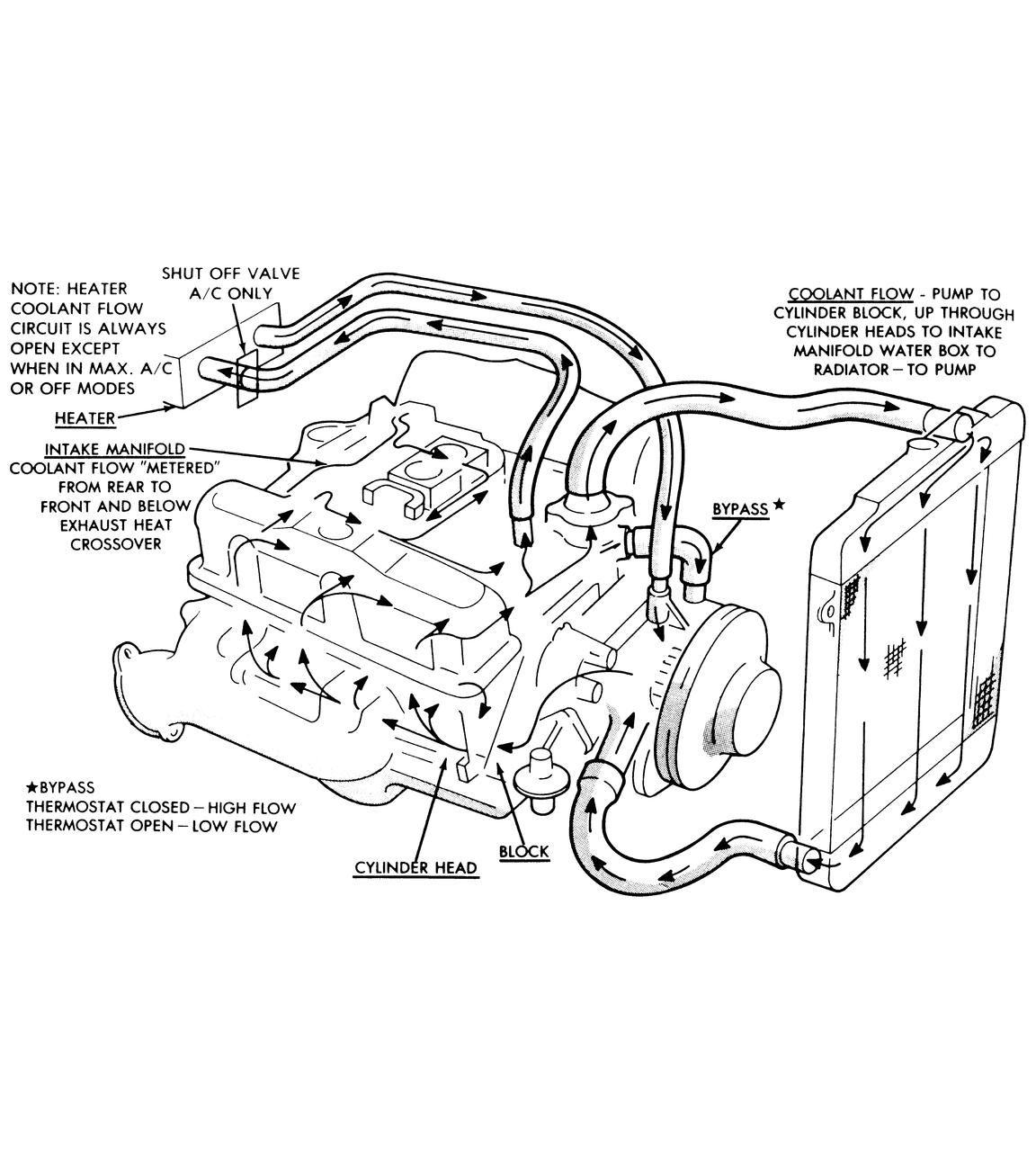

| Fig. 8: Cutaway view of a typical cooling system flow
|

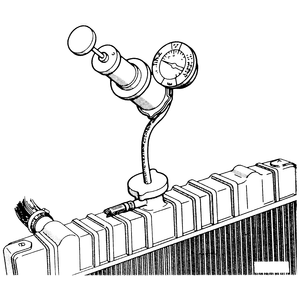

| Fig. 9: Cooling systems should be pressure tested for
leaks periodically
|
