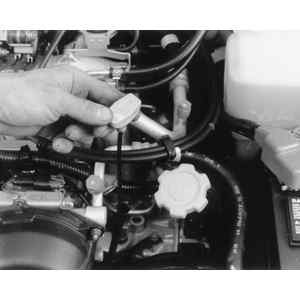

| Fig. 1: Remove the dipstick from the tube — 2.5L
engine shown
|

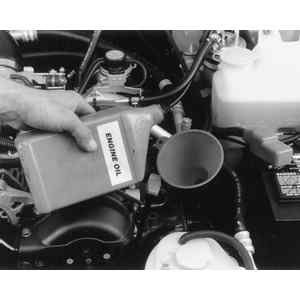

| Fig. 2: Add engine oil in small increments
|
The engine oil level should be checked at regular intervals. For example, whenever the car is refueled. Wait a few minutes after the engine is stopped before checking the oil level or an inaccurate reading will result. Also, the vehicle should be parked on a level surface.
CAUTION
If the low oil pressure warning light comes on while the engine is running,
stop the engine immediately and check the oil level.
Remove the dipstick, which is located on the right (passenger) side of the crankcase, and wipe it with a clean cloth. Insert it again and withdraw it. The oil level should be at the F (FULL) upper mark or between the F mark and the lower mark (ADD) on the dipstick. Do not run the engine if the oil level falls below the lower mark.
Add oil as necessary. Use only oil which carries the API designation SF or SG. Always use oil with the proper viscosity rating (SAE number) for your particular driving conditions. Do not overfill. The oil level should never rise above the F mark.
