LEVEL CHECK

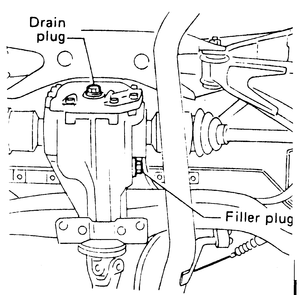

Fig. 1: Rear differential fill and drain plugs — all 4WD models except Justy

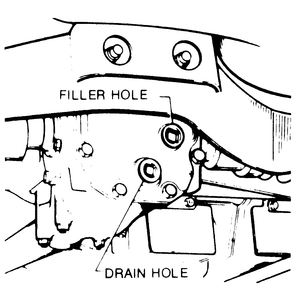

Fig. 2: Justy rear differential fill and drain plugs

Unlike the procedures outlined above, the lubricant level in the rear differential must be checked from underneath the vehicle.

  1. Park the car on a level surface, turn OFF the engine and engage the parking brake.
  2. Crawl under the car from the rear until the differential housing can be reached easily.
  3. Remove the filler hole (upper) plug from the back of the differential case.
  4. The lubricant should be at the level of the filler hole. If not, add the proper weight gear oil with API classification of GL-5 or GLS.
  5. Install the filler plug and tighten to 33 ft. lbs. (44 Nm).
