REMOVAL & INSTALLATION

Carbureted Engines

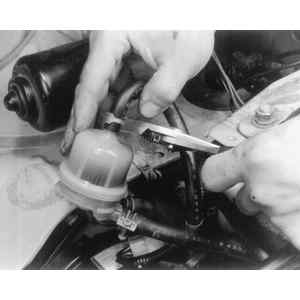

Fig. 1: Use pliers to squeeze and remove spring-type hose clamps

Fig. 2: Fuel filter mounted underneath the vehicle

NOTE: Before removing the fuel lines, use hose pliers or equivalent, to pinch off the fuel lines on both sides of the fuel filter.

On carbureted models, the fuel filter is located in the engine compartment, close to the passenger side of the firewall or under the vehicle beneath the driver's seat.

  1. Disconnect the negative battery cable.
  2. If the fuel filter is located in the engine compartment;
    1. Snap the filter out of its mounting bracket.
    2. Loosen, but DO NOT remove, the two hose clamp retainers, located at either end of the filter.
    3. Remove the hoses from the filter necks.
    4. Discard the old filter.
  3. If the filter is located under the vehicle;
    1. Raise and support the vehicle safely on jackstands.
    2. Locate the fuel filter on a bracket under the center of the vehicle.
    3. Place a pan under the filter, to catch any excess spilled fuel.
    4. Disconnect the fuel pump electrical connector. Unfasten the hose clamps at both ends of the filter and slide the hoses off the filter.
    5. As required, remove the bolts from the fuel pump bracket and pull the filter off the bracket to remove. Once removed, discard the filter.

      CAUTION
      When removing the old filter, be careful not to allow any fuel to drop onto hot engine components.

      To install:

  4. Check the hoses for cracks and wear, and replace if needed.
  5. Install the new filter into the mounting bracket.
  6. Connect the hoses on the filter necks and tighten the hose clamps securely.
  7. Connect the negative battery cable.
  8. Lower the vehicle if raised.
  9. Start the vehicle and check for leaks.
Fuel Injected Models

Fig. 3: Fuel filter and pump — Justy models

Fig. 4: Fuel filter — SVX models

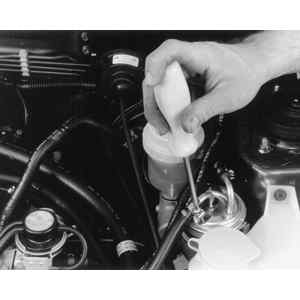

Fig. 5: Loosen the hose clamps securing the fuel lines to the filter

  1. Locate the fuel filter in the engine compartment on the left inside fender.
  2. Reduce the fuel pressure as follows:
    1. Disconnect the electrical wiring connector from the fuel pump.
    2. Crank the engine for five seconds or more. If the engine starts, let the engine run until it stops.
    3. Turn the ignition switch OFF and reconnect the electrical wiring connector to the fuel pump.
  3. Disconnect the negative battery cable.
  4. Loosen the hose clamp screws and slide the hoses off the filter. Remove the filter from the bracket.

    To install:

  5. Inspect the hoses for wear or cracks, and replace if needed.
  6. Install the new filter into the bracket and tighten the hose clamp screws.
  7. Lower the vehicle and connect the negative battery cable.
  8. Start the engine and check for leaks.
