Depending on the model and trim level, an oil pressure gauge may be installed in the vehicle instrument cluster. This gauge uses a separate sensor to register oil pressure.

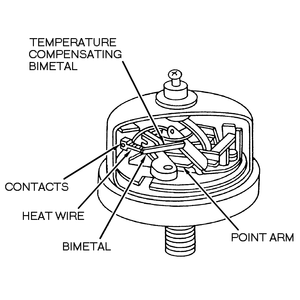

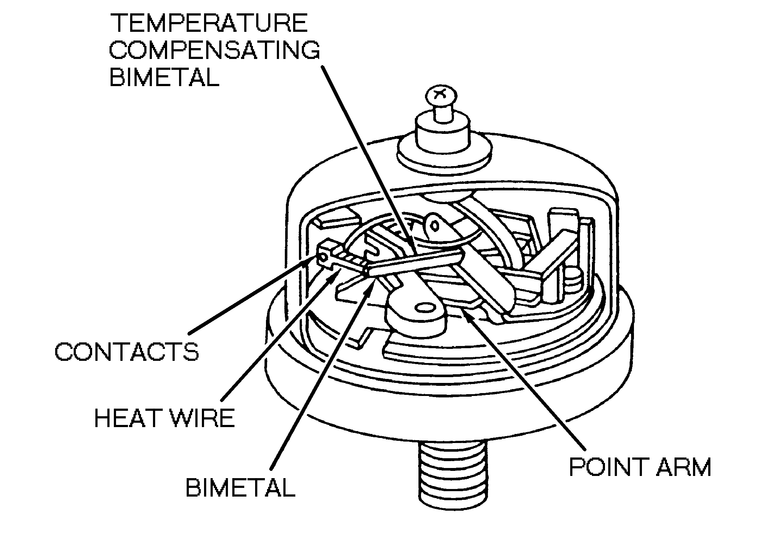

| Fig. 1: Cutaway view of oil pressure gauge sensor switch
|

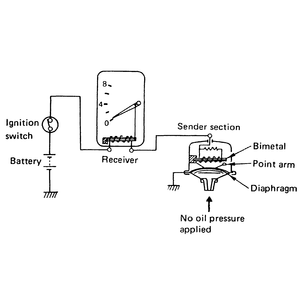

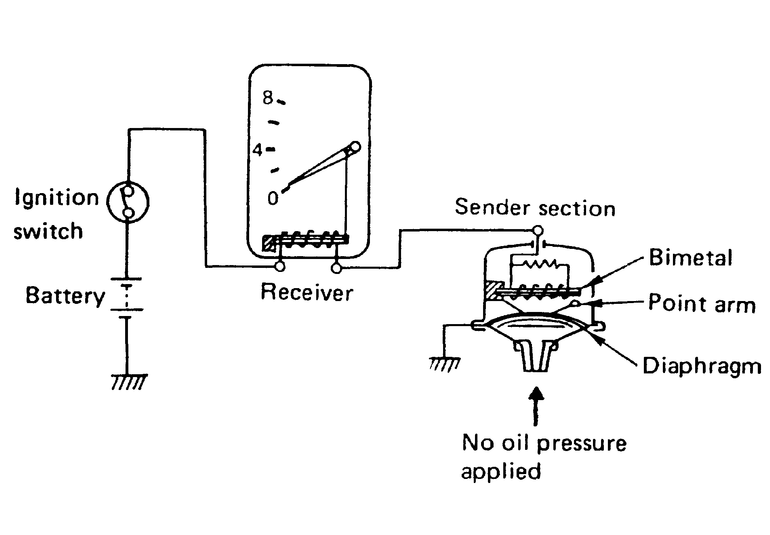

| Fig. 2: Schematic of oil pressure gauge and sensor with
no oil pressure
|

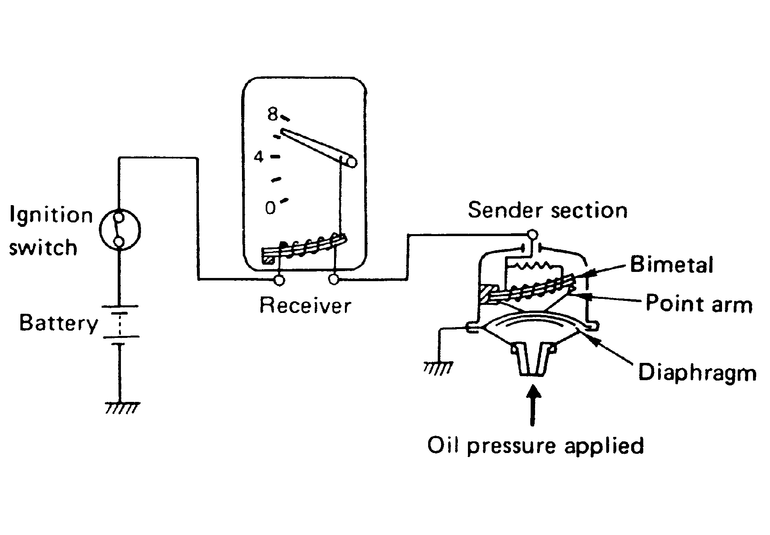

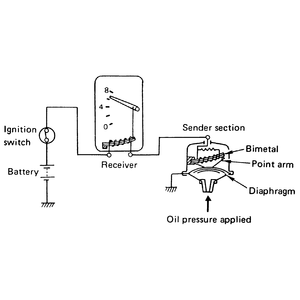

| Fig. 3: Schematic of oil pressure gauge and sensor with
oil pressure applied
|
