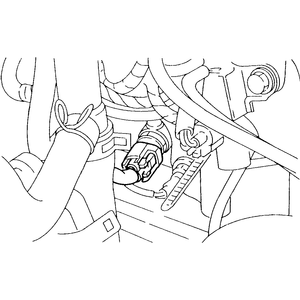

| Fig. 1: Engine coolant temperature sensor in the intake
manifold — Impreza
|
The ECT sensor is installed on the coolant passage wall of the intake manifold. The thermistor inside changes resistance with to coolant temperature changes. The ECT sensor sends the coolant temperature signal to the ECU, which determines the fuel quantity to be injected and the ignition timing.
