REMOVAL & INSTALLATION

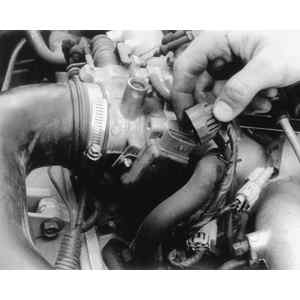

Fig. 1: Disconnect the wire harness from the throttle position sensor — Legacy

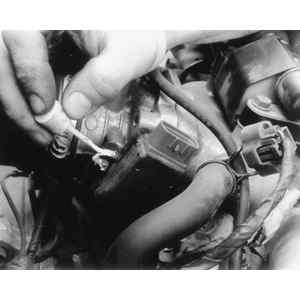

Fig. 2: Paint a matchmark on the sensor and throttle body for ease of installation and adjustment

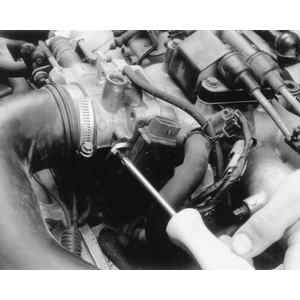

Fig. 3: Remove the sensor retainer screws

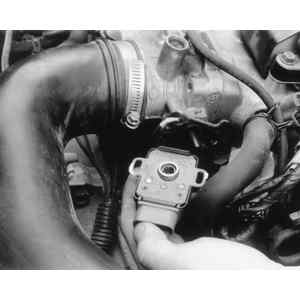

Fig. 4: Lift off the throttle position sensor

  1. Disconnect the negative battery cable.
  2. Disconnect the throttle sensor electrical harness.
  3. Place a matchmark on the throttle position sensor and throttle body mounting surface, so that during installation, the sensor can be properly aligned.
  4. Remove the 2 screws securing the throttle sensor to the throttle body assembly.
  5. Remove the throttle sensor by pulling it in the axial direction of the throttle shaft.
  6. Remove the throttle sensor O-ring and discard.

    To install:

  7. Using a new throttle O-ring, install the throttle sensor, aligning the matchmarks. Install and hand-tighten the retainer screw.
  8. Connect the throttle sensor electrical harness.
  9. Connect the negative battery cable.
