TESTING

Legacy, Impreza and SVX

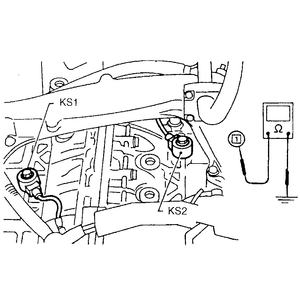

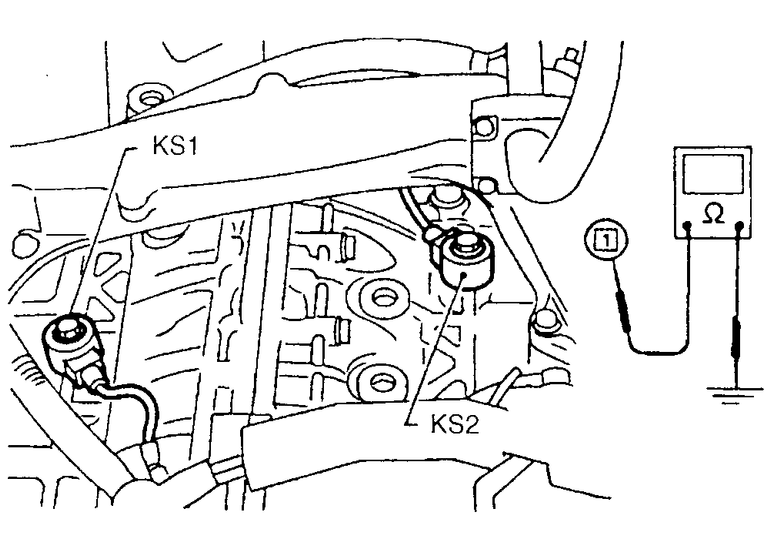

Fig. 1: Testing the knock sensor

  1. Disconnect the KS harness.
  2. Measure the resistance across the KS terminals.
  3. The resistance should be approximately 560 kilo-ohms.
  4. Replace the KS if the resistance is out of range.
