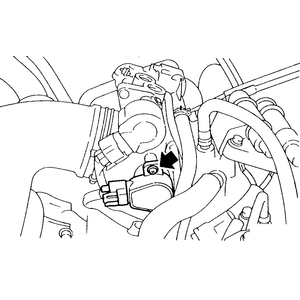

| Fig. 1: Throttle position sensor attached to the side
of the throttle body assembly — Impreza
|
This sensor sends the ECU an output signal which corresponds to the opening of the throttle valve. Using this output signal, the ECU precisely controls the air/fuel ratio during acceleration, deceleration and idling. The TP sensor and the throttle switch are combined as part of an assembly. The switch signal turns ON only when the throttle is opened to the idle position or at Wide Open Throttle (WOT) acceleration.
