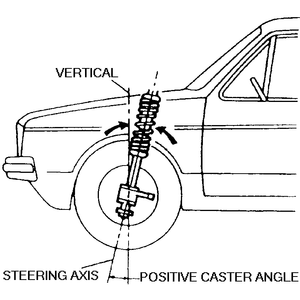

| Fig. 1: Caster angle affects straight line stability
|
Wheel alignment is defined by three different adjustments in three planes. Looking at the vehicle from the side, caster angle describes the steering axis rather than a wheel angle. The steering knuckle is attached to the strut at the top and the control arm at the bottom. The wheel pivots around the line between these points to steer the vehicle. When the upper point is tilted back, this is described as positive caster. Having a positive caster tends to make the wheels self-centering, increasing directional stability. Excessive positive caster makes the wheels hard to steer, while an uneven caster will cause a pull to one side.
