REMOVAL & INSTALLATION

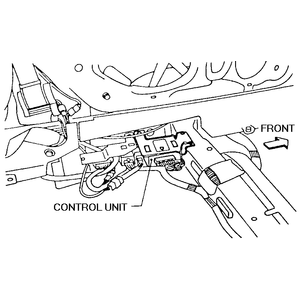

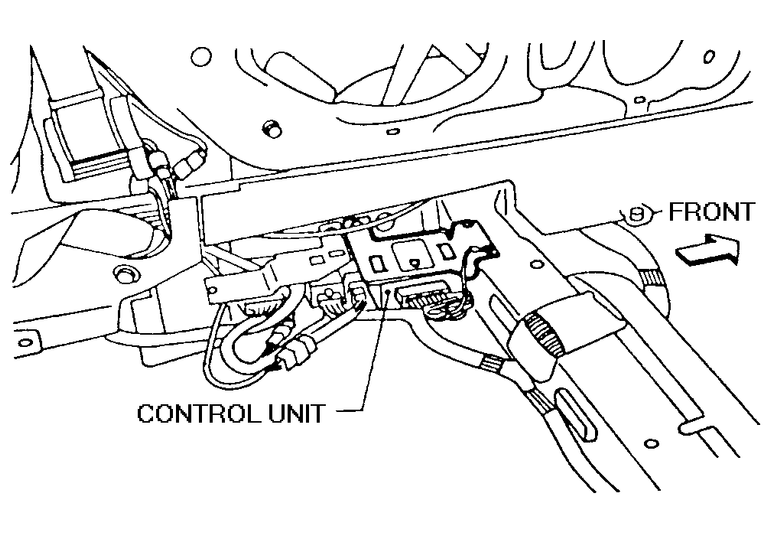

Fig. 1: Control unit under driver's seat

  1. Disconnect the negative battery cable.
  2. Remove the driver front seat assembly, and place aside.
  3. Lift the carpet up, and unfasten the control unit retainer screws.
  4. Unfasten the control unit wire harnesses.
  5. Installation is the reverse of removal. Confirm that the height control system functions correctly before driving the vehicle.
