Parking Brake Shoes

REMOVAL & INSTALLATION

Fig. 1: Parking brake shoe assembly — Legacy, Impreza and SVX

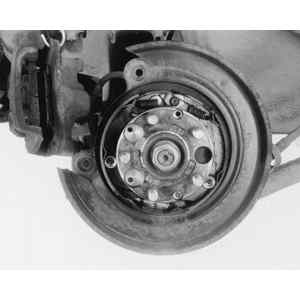

Fig. 2: With the rotor removed, the parking brake shoe assembly is visible — Legacy

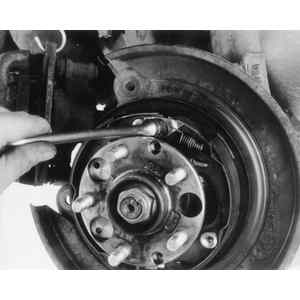

Fig. 3: Use a brake spring removal tool to remove the upper brake springs . . .

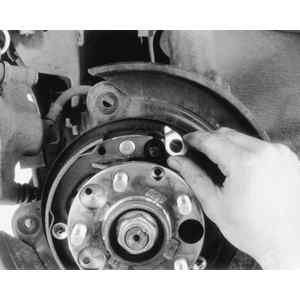

Fig. 4: . . . then remove the retainer plate between the shoes and springs

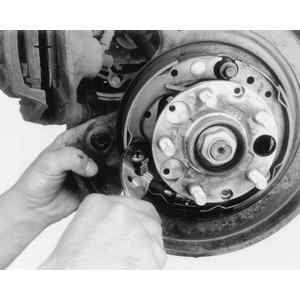

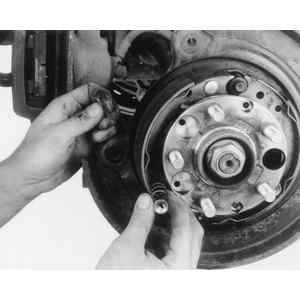

Fig. 5: Remove the hold-down clip . . .

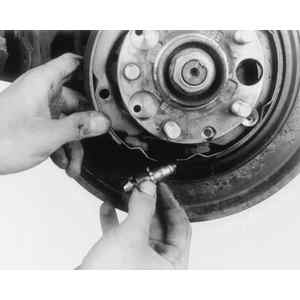

Fig. 6: . . . followed by the hold-down pin

Fig. 7: Remove the adjuster assembly from the base of the shoes

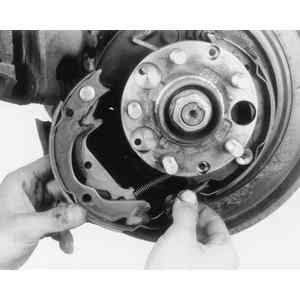

Fig. 8: Detach the brake shoe from the lower retainer spring and strut

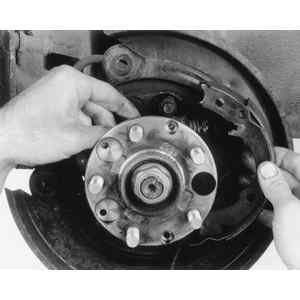

Fig. 9: Remove the other shoe from the strut and backing plate, and place aside

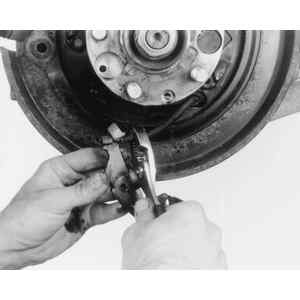

Fig. 10: Use pliers to pull the spring back, then detach the cable from the brake shoe lever

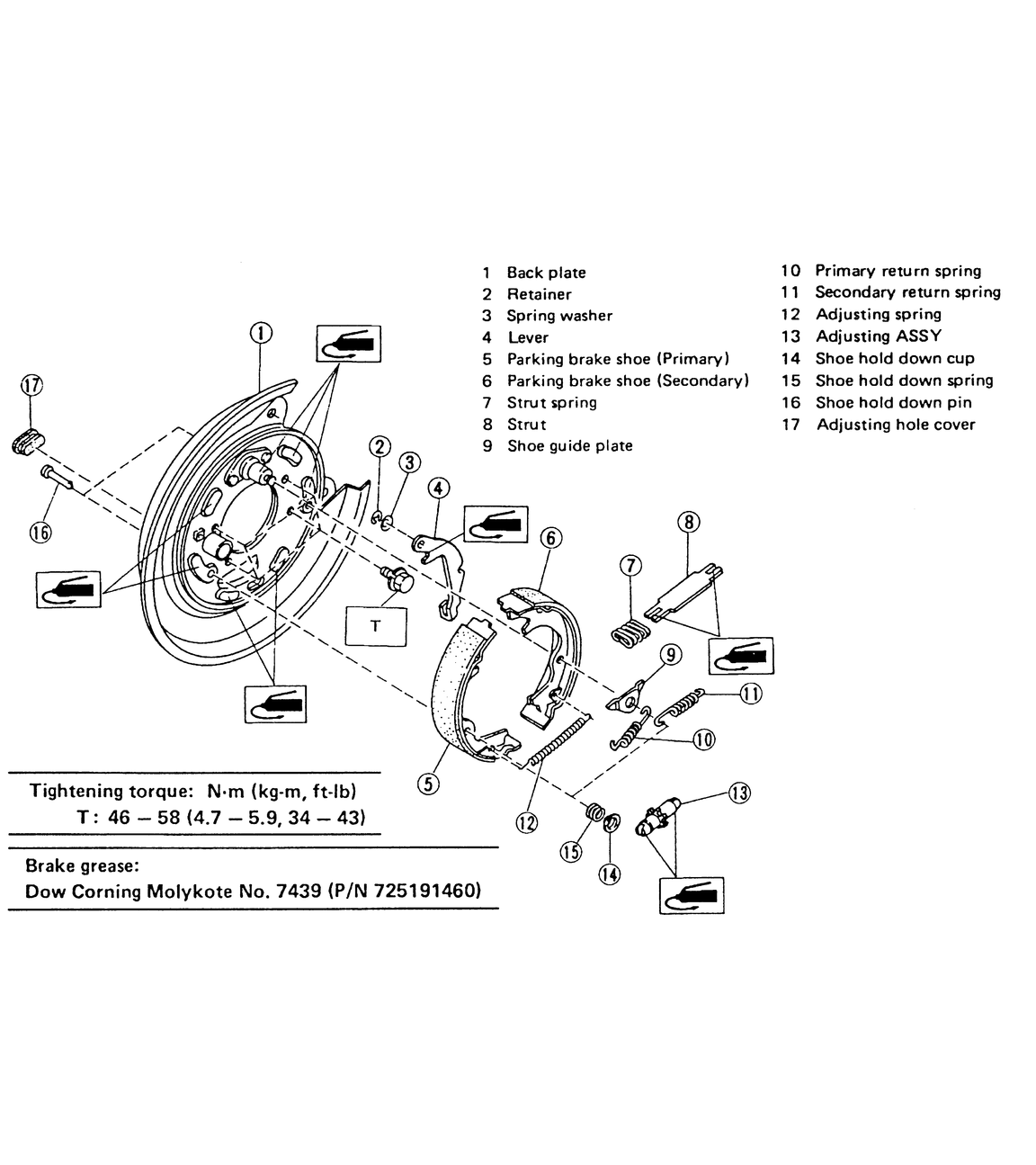

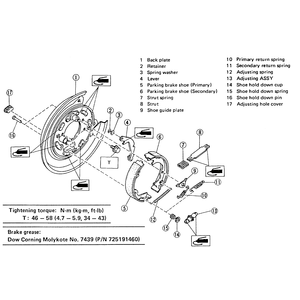

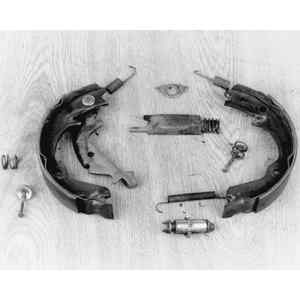

Fig. 11: Parking brake shoe components — Legacy, Impreza and SVX

Legacy, Impreza and SVX models equipped with rear disc brakes, incorporate a parking brake shoe assembly. This system uses the inside of the rear brake rotors as brake drums and has sets of brake shoes which act on the inner surface of the rotors to hold the vehicle. The mechanism that operates the parking brake shoes is the same as if it were a standard drum brake.

  1. Raise and safely support the vehicle on jackstands. Remove the tire and wheel assemblies.
  2. Remove the brake caliper and pad assemblies, as outlined earlier in this section. Do not disconnect the brake hose from the caliper. Support the caliper from the chassis with a piece of wire.
  3. Remove the brake disc assembly.
  4. Remove the primary and secondary return springs from the brake shoes.
  5. Remove the front hold-down spring and pin. Remove the brake shoe strut and strut spring.
  6. Remove the adjuster assembly. Remove the brake shoes.
  7. Remove the parking brake cable from the parking brake lever. Remove the parking brake lever from the brake shoe.

    To install:

  8. Apply a light coating of grease to the brake pad contact points. Install the parking brake lever onto the shoe.
  9. Connect the parking brake cable to the lever. Install the adjusting screw spring to the trailing brake shoe.
  10. Install the rear shoe hold-down spring and pin. Install the adjusting screw spring to the forward brake shoe.
  11. Install the adjuster assembly in between the front and rear shoes. Install the strut assembly and the spring.
  12. Install the shoe guide plate to the anchor pin and install the return springs.
  13. Install the brake rotor, caliper and pad assemblies.
  14. Repeat Steps 2–13 for the other side, if necessary.
  15. Install the wheel and tire assemblies.
  16. Adjust the parking brake shoes through the opening in the backing plate.
