Remove control knob handle. Pop off the door corner finisher panel then remove mirror body attaching screws, and then the mirror body. Installation is in the reverse order of removal.
NOTE: Apply sealer to the rear surface of door corner finisher panel during installation to prevent water leak.

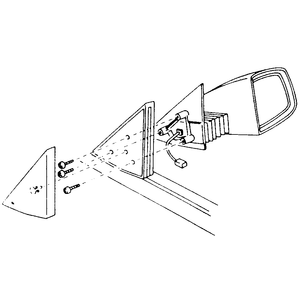

| Fig. 1: Power outside mirror installation
|
Remove door corner finisher panel and the mirror body attaching screws, and then extract the mirror body. Disconnect the electrical wiring. Installation is in the reverse order of removal.
NOTE: On SVX and Legacy models, it will be necessary to remove the door trim panel to gain access to the electrical connection.
