INSTALLATION

Install or connect the following:

• Alternator
• Mounting bolts
• Drive belt. Adjust the tension to 0.276–0.354 in. (7–9mm) for new or 0.354–0.433 in. (9–11mm) for used. Torque the slider bolt to 4–6 ft. lbs. (6–10 Nm) and the lockbolt to 16.5 ft. lbs. (19.5 Nm).
• Belt cover
• Wires
• Negative battery Cable

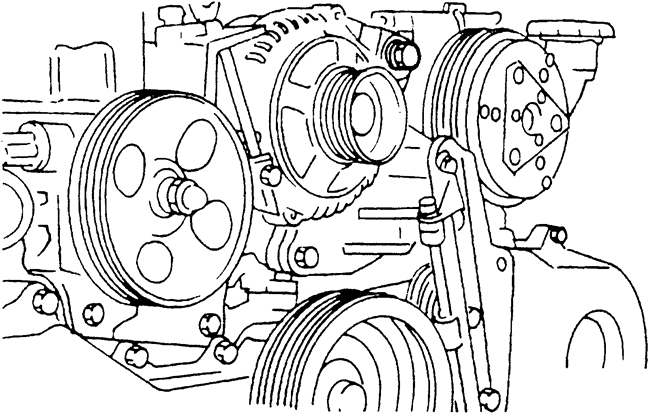

  Fig. 1: View of alternator mounting
