Fuel Injector

REMOVAL & INSTALLATION

1998

1. Before servicing the vehicle, refer to the precautions in the beginning of this section.
2. Properly relieve the fuel system pressure.
3. Remove or disconnect the following:
   • Negative battery cable
   • Electrical connector from injector
   • Fuel injector from fuel rail

   To install:

4. Replace old O-rings and insulator with new.
5. Install or connect the following:
   • Fuel injector from fuel rail. Torque the mounting bolts to 2.5 ft. lbs. (3.4 Nm).
   • Electrical connector to injector
   • Negative battery cable

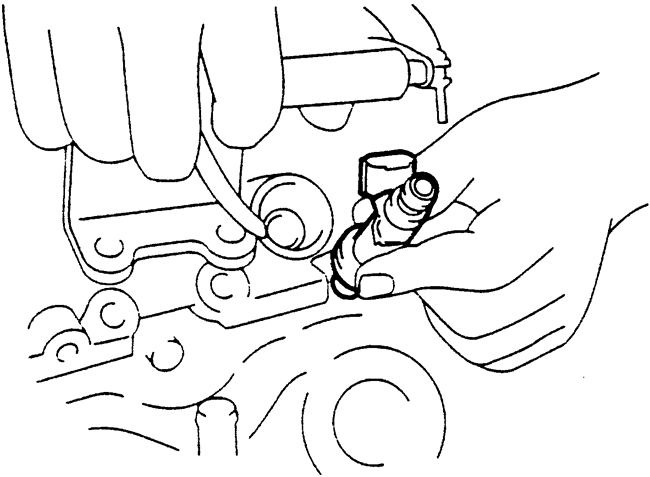

     Fig. 1: View of fuel injector removal — 1998 models

1999–01

1. Before servicing the vehicle, refer to the precautions in the beginning of this section.
2. Properly relieve the fuel system pressure.
3. Remove or disconnect the following:
   • Negative battery cable
   • Air duct and cleaner assembly
   • Resonator chamber
   • Spark plug wires No. 1 and 3
   • V-belt covers
   • Power steering pump belt
   • Power steering pipe bracket from manifold
   • Power steering pump and seat aside
   • Wires from fuel injector
   • Injector pipe from intake manifold
   • Fuel injector

   To install:

4. Install or connect the following:
   • Fuel injector
   • Injector pipe to intake manifold
   • Wires to fuel injector
   • Power steering pump
   • Power steering pipe bracket to manifold
   • Power steering pump belt
   • V-belt covers
   • Spark plug wires No. 1 and 3
   • Resonator camber
   • Air duct and cleaner assembly
   • Negative battery cable

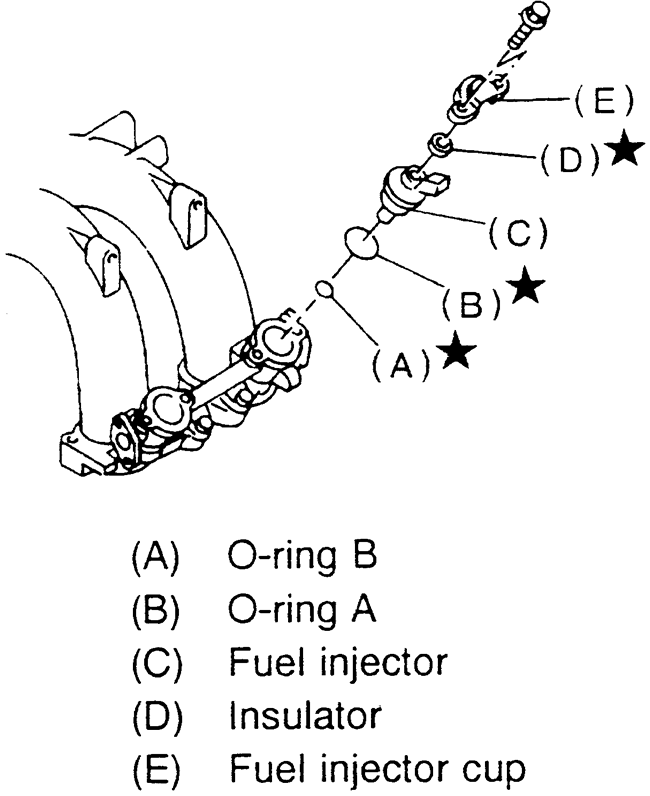

     Fig. 2: View of fuel injector removal on 1999–01 models
