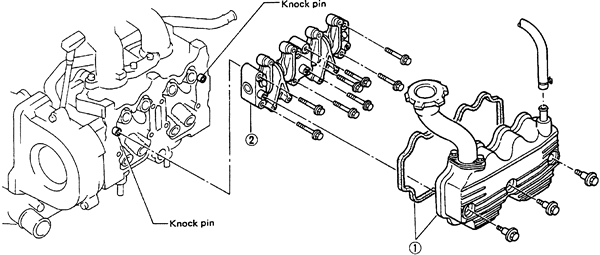

| Fig. 1: Exploded view of the cylinder head and rocker
assembly-2.2L engines
|

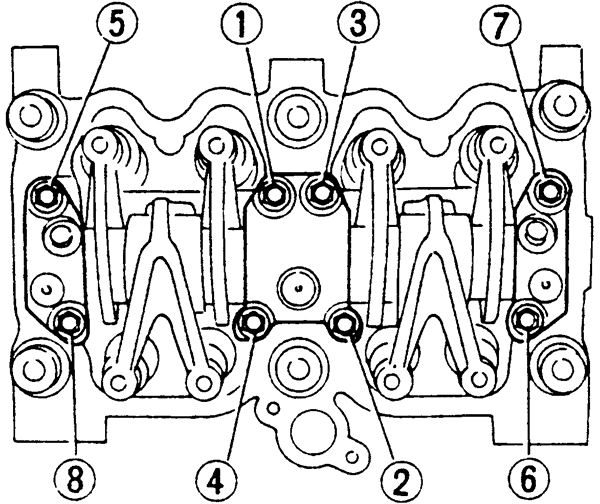

| Fig. 2: Rocker shaft bolt loosening/tightening sequence-1998
2.2L engines
|

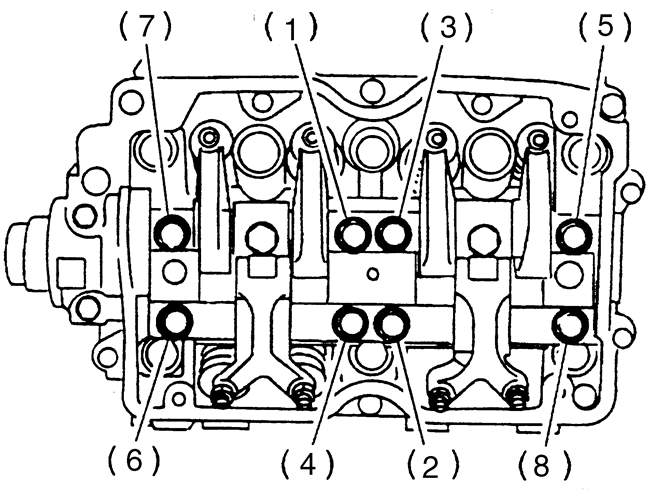

| Fig. 3: Rocker shaft bolt loosening/tightening sequence-1999-01
2.2L engines
|
- Before servicing the vehicle, refer to the precautions in the beginning
of this section.
- Remove or disconnect the following:
- Positive Crankcase Ventilation (PCV) hose
- Rocker cover
- Valve rocker assembly by removing bolts 2 through 4 in numerical sequence
- Loosen bolt 1, but leave it engaged to retain the valve rocker assembly.
- Remove or disconnect the following:
- Bolts 5 through 8, taking care not to gouge the dowel pin
- Valve rocker assembly
To install:
- Install the valve rocker assembly on the cylinder head.
- Temporarily tighten bolts 1 through 4 equally.
NOTE: Do not allow the valve rocker assembly to gouge the
dowel pins.
- Tighten bolts 5-8 to 108 inch lbs. (12 Nm).
- Tighten bolts 1-4 to 108 inch lbs. (12 Nm).
- Install the rocker cover and connect the PCV hose.
This engine is not equipped with either rocker shafts or rocker arms. Instead,
the camshafts act directly on the individual valves.
