Halfshaft

Fig. 1: Unstaking the axle nut

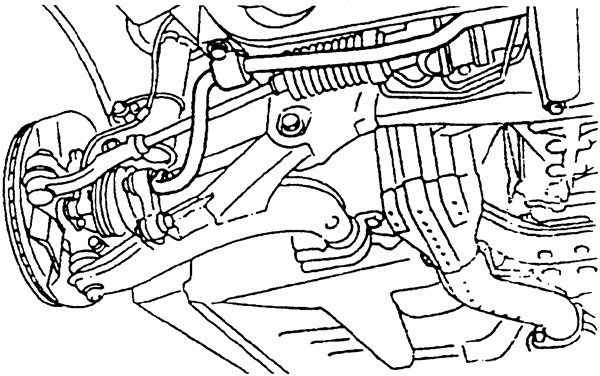

Fig. 2: Remove the transverse link arm from the crossmember

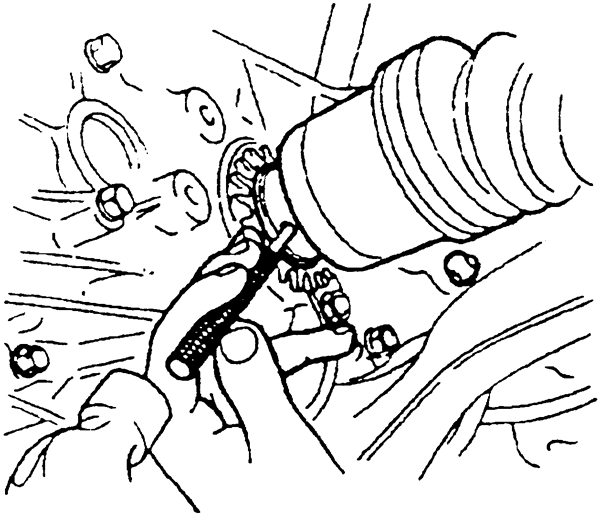

Fig. 3: Drive out the halfshaft-to-transaxle roll pin

Fig. 4: Remove the sway bar bracket

Before servicing the vehicle, refer to the precautions in the beginning of this section.
Remove or disconnect the following:
- Negative battery cable
- Wheel
- Axle nut, unstake the nut before attempting removal
- Stabilizer link from the transverse link
- Transverse link arm from the knuckle
- Halfshaft-to-transaxle roll/spring pin and discard it
- Sway bar bracket

  Fig. 5: Using a special puller tool, press the axle shaft from the spindle housing

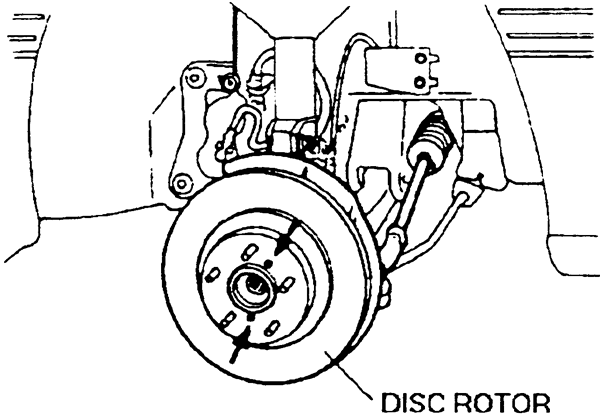

  Fig. 6: Use 2 8mm bolts (arrows) to loosen the rotor from the spindle housing

  Fig. 7: Using a special tool to separate the tie rod end from the steering knuckle

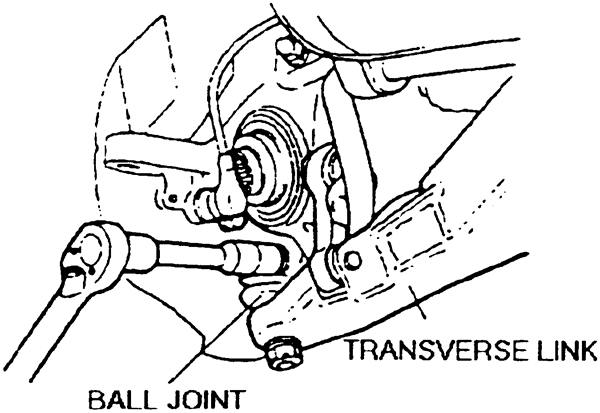

  Fig. 8: Remove the transverse link arm from the spindle housing

  Fig. 9: Be sure to identify the correct halfshaft
- Halfshaft from the transaxle
- Halfshaft from the hub using puller 92707000
To install:
Install or connect the following:
- Halfshaft into the hub
Using installer 922431000 and adapter 927390000, pull the halfshaft through the hub.

Install or connect the following:

Temporarily tighten a new axle nut
Align the halfshaft roll/spring pin hole
Halfshaft onto the transaxle
New pin.
Transverse link to the knuckle and tighten a new self-locking nut to 29-43 ft. lbs. (39-59 Nm)
Sway bar bracket
New axle nut to 152 ft. lbs. (206 Nm) and stake the nut
Wheel

Negative battery cable

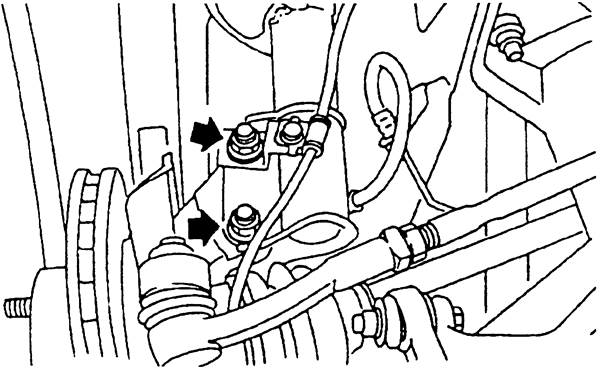

Fig. 10: Before loosening the strut-to-housing bolts (arrows), matchmark the camber adjustment bolt and strut

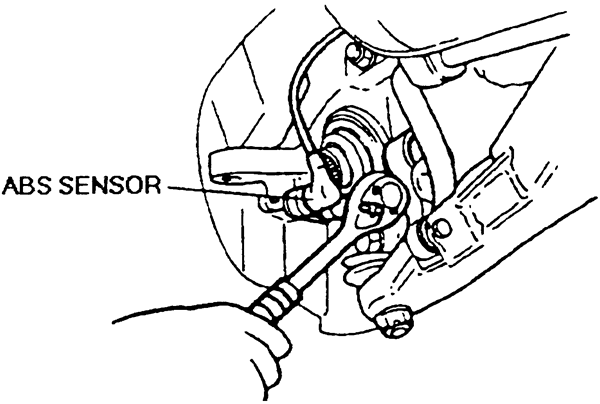

Fig. 11: Removing the ABS sensor
