Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Fuel tank

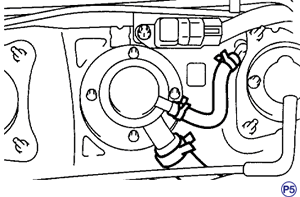

     Evap Vent Valve

   • Hoses from vent valve
   • Vent valve to fuel tank nuts
   • Vent valve

To Install:

Note: Replace rubber seat with a new one.

1. Install or connect the following
   • Vent valve
   • Vent valve to fuel tank nuts
   • Hoses to vent valve
   • Fuel tank
