Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Ground cable from battery

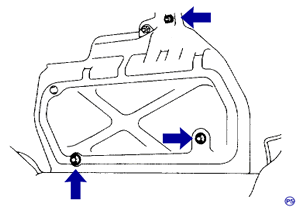

     ECM Cover

   • Lower inner trim of the passenger side
   • Floor mat of the front passenger seat

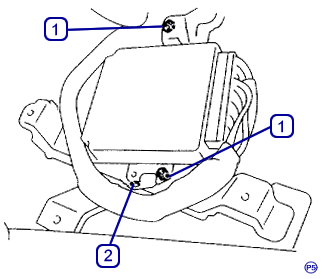

     ECM

   • ECM to bracket nuts (A)
   • Clip (B) from the bracket
   • ECM connectors and take out the ECM

To Install:

1. Install or connect the following:

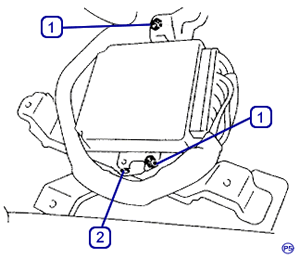

   ECM

   • ECM and connectors.
   • Clip (B) for the bracket
   • ECM to bracket nuts (A)
   • Floor mat of the front passenger seat

     ECM Cover

   • Lower inner trim of the passenger side
   • Ground cable from battery
