Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Battery ground cable

     IAC

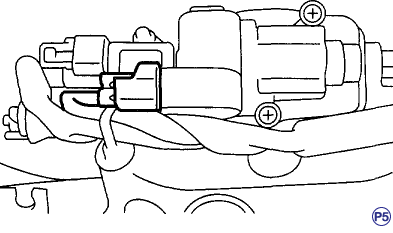

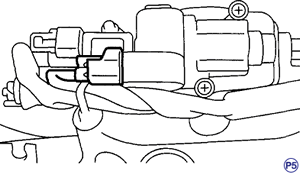

   • Idle air control solenoid valve connector
   • Idle air control solenoid valve from throttle body

To Install:

Note: Always use a new gasket.

1. Install or connect the following
   • Idle air control solenoid valve to throttle body
   • Idle air control solenoid valve connector
   • Battery ground cable
