Headlights

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Ground cable from battery

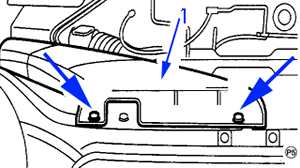

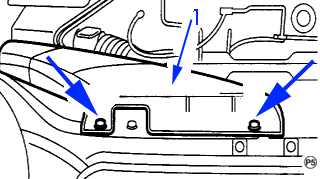

   • Duct (Right side headlight)
   • Front grill
   • Headlight side cover

   • Headlight bulb connector

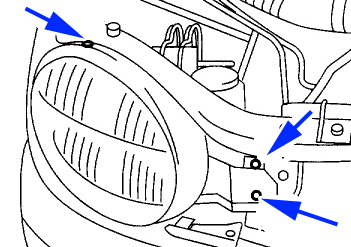

   • Three mounting bolts
   • Headlight assembly

To Install:

1. Install or connect the following:
   • Headlight assembly
   • Three mounting bolts
   • Headlight bulb connector
   • Duct
   • Ground cable to battery
