Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Battery ground cable
   • Air cleaner case
   • Air cleaner case stay

     STARTER R&R

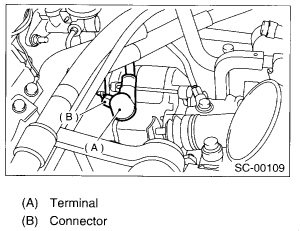

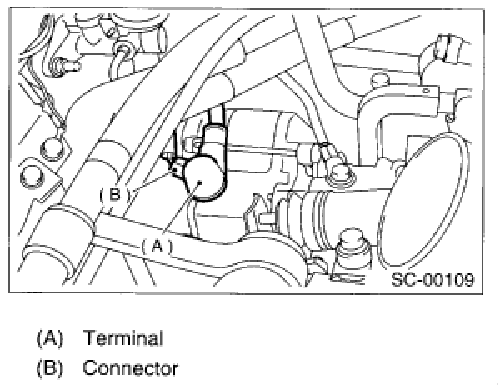

   • Connector and terminal from starter
   • Starter bolts from transmission

To Install:

1. Install or connect the following
   • Starter and mounting bolts to transmission
     1. Torque specification: 50 N.m (37 ft-lb)
   • Connector and terminal to starter
   • Air cleaner case stay
   • Air cleaner case
   • Battery ground cable
