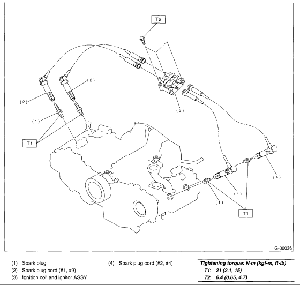

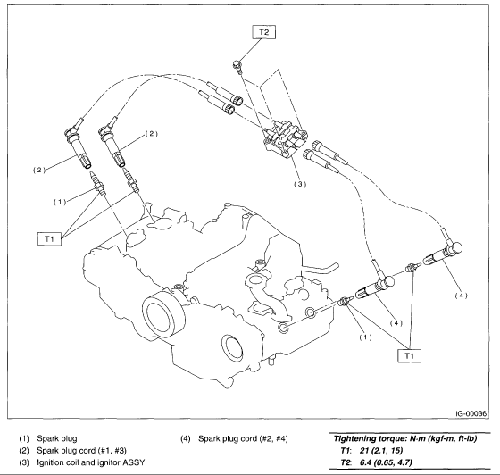

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Battery ground cable
   • Spark plug wire from ignition coil and ignitor assembly
   • Connector from ignition coil and ignitor assembly
   • Ignition coil and ignitor assembly

To Install:

1. Install or connect the following:
   • Ignition coil and ignitor assembly
   • Torque mounting bolts to 6.4 Nm (4.7 ft-lb)
   • Connector from ignition coil and ignitor assembly

     CAUTION
     Be sure to connect spark plug wires to their proper positions. Failure to do so will damage unit.

   • Spark plug wires from ignition coil and ignitor assembly
   • Battery ground cable
