Camshaft, Bearings and Lifters

Removal & Installation

To Remove:

Disconnect or remove the following for right side

Negative Battery Cable
- Ground cable from battery

  Engine Harness Connector

  Engine Harness Bracket
- Engine harness connector with bracket from air cleaner upper cover
- Air intake duct
- Air cleaner case
- Ignition coil connector
- Ignition coil
- PCV hose from rocker cover

  Valve Cover
- Rocker cover mounting bolts
- Rocker cover
- Timing belt
- Cam shaft
Disconnect or remove the following for left side

Negative Battery Cable
- Battery cable
- Battery and battery carrier

  Washer Motor Connector
- Washer motor connectors

  Washer Bottle Bolts
- Washer tank mounting bolts
- Washer tank (set aside)
- Ignition coil connector
- Ignition coil
- PCV hose from rocker cover

  Valve Cover
- Rocker cover bolts
- Rocker cover
- Timing belt
- Cam shaft

To Install:

Connect or install the following for right side
- Cam shaft
- Timing belt

  Rocker Cover
- Rocker cover
- Rocker cover mounting bolts
- PCV hose to rocker cover
- Ignition coil
- Ignition coil connector
- Air cleaner case
- Air intake duct

  Engine Harness Connector

  Engine Harness Bracket
- Engine harness connector with bracket to air cleaner upper cover

  Negative Battery Cable
- Ground cable from battery
Connect or install the following for left side

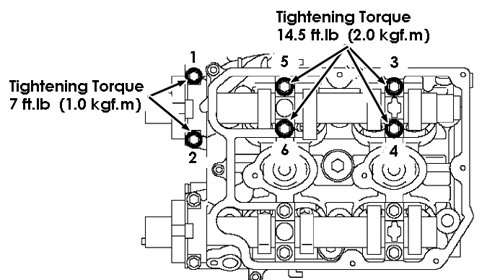

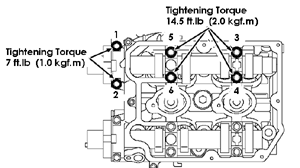

- Gradually tighten the camshaft cap and oil control valve assembly in at least two stages in alphabetical sequence shown in the figure, and then tighten to specified torque
- Cam shaft
- Timing belt

  Valve Cover
- Rocker cover
- Rocker cover bolts
- PCV hose to rocker cover
- Ignition coil connector
- Ignition coil

  Washer Bottle Bolts
- Washer tank mounting bolts
- Washer tank

  Washer Motor Connector
- Washer motor connectors
- Battery and battery carrier

  Negative Battery Cable
- Battery cable
