Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery

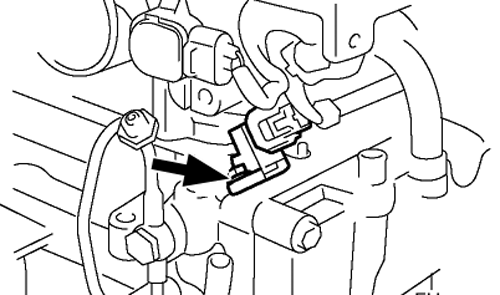

     Camshaft Sensor

   • Connector from the camshaft position sensor RH
   • Camshaft position sensor RH from the backside of cylinder head
   • Camshaft position sensor LH same as RH side

To Install:

1. Connect or install the following

   Camshaft Sensor

   • Camshaft position sensor LH same as RH side
   • Camshaft position sensor RH from the backside of cylinder head
   • Connector from the camshaft position sensor RH
   • Ground cable from battery
