To Remove:
- Disconnect or remove the following
- Ground cable from battery

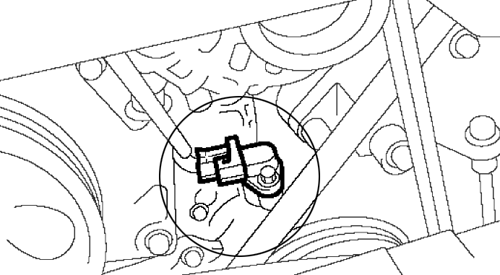

| Crank Position Sensor
|
- Crankshaft position sensor connector
- Crankshaft position sensor to cylinder block bolt
- Crankshaft position sensor
To Install:
- Connect or install the following
| Crank Position Sensor
|
- Crankshaft position sensor
- Crankshaft position sensor to cylinder block bolt
- Torque specification: 6.4 Nm (4.7 ft-lb)
- Crankshaft position sensor connector
- Ground cable from battery
