To Remove:
- Disconnect or remove the following
- Battery ground cable
| IAC
|
- Idle air control solenoid valve connector

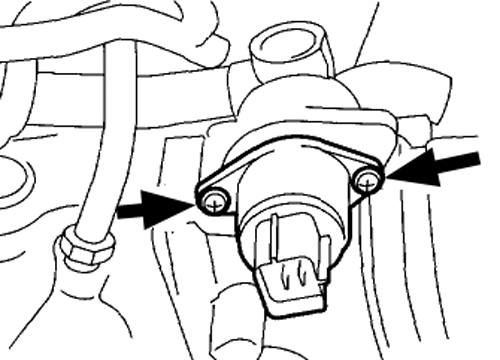

- Idle air control solenoid valve from throttle body
To Install:
NOTE: Always use a new gasket.
- Install or connect the following
| IAC
|
- Idle air control solenoid valve to throttle body
- Tightening torque: 2.4 N.m (0.24 kgf-m, 1.7 ft-lb)
- Idle air control solenoid valve connector
- Battery ground cable
