To Remove:
- Disconnect or remove the following
- Ground cable from battery

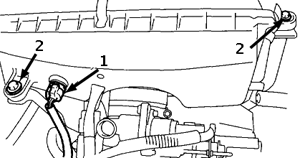

| Intake Air Temp Sensor
|
- Intake air temperature sensor connector (A)
- Air cleaner case cover clips
- Air cleaner element
- Intake air temp sensor
To Install:
- Install or connect the following
| Intake Air Temp Sensor
|
- Intake air temp sensor
- Air cleaner element
- Air cleaner case cover clips
- Intake air temperature sensor connector (A)
- Ground cable to battery
