Removal & Installation

To Remove:

CAUTION
Removal is not allowed except for the damage of PCV hose, diagnosis connector and PCV valve.

1. Remove the intake manifold

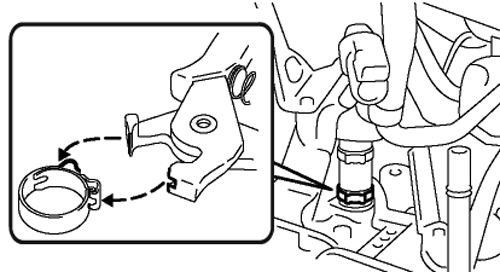

2. Using CLAMP PLIER ST 18353AA000, unlock clamp
3. Remove the PCV valve

To Install:

NOTE: Replace the clamp with a new one.

1. Install the PCV
2. Using CLAMP PLIER ST 18353AA000, lock clamp
3. Install the intake manifold
