Dome Light

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery

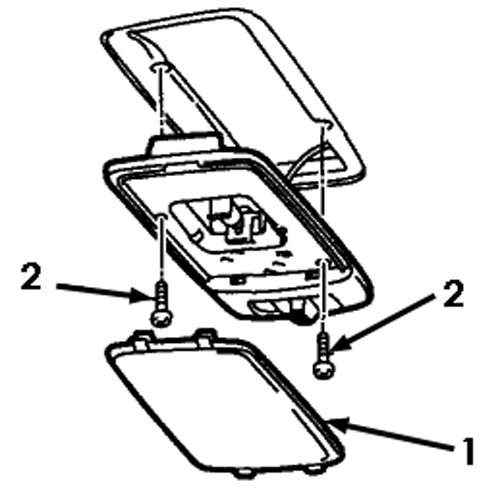

   • Lens (a) and room light mounting screws (b)
   • Harness connectors
   • Dome light

To Install:

1. Connect or install the following
   • Dome light
   • Harness connectors
   • Lens (a) and room light mounting screws (b)
   • Ground cable to battery
