Side Marker Light

Removal & Installation

Rear Finisher Lamp

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery

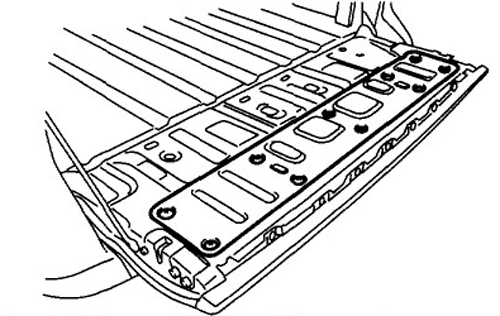

   • Tail gate tray

   • Tail gate cover

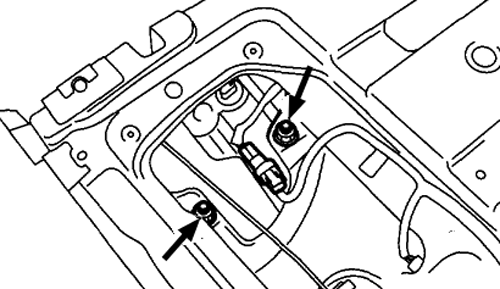

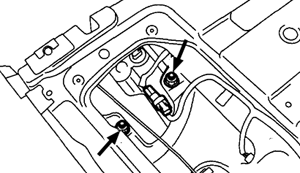

   • Rear finisher light connector
   • Rear finisher light nuts
   • Rear finisher light

To Install:

1. Connect or install the following
   • Rear finisher light
   • Rear finisher light nuts
   • Rear finisher light connector

   • Tail gate cover
   • Tail gate tray
   • Ground cable to battery
