Neutral Safety Switch or Gear Position Switch

Removal & Installation

To Remove:

1. Remove the following

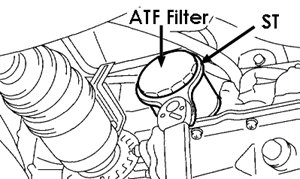

2. ATF filter using (ST 498548500 OIL FILTER WRENCH)

To Install:

1. Get new ATF filter and apply a thin coat of ATF to the oil seal

2. Install ATF filter. Turn it by hand, being careful not to damage oil seal
3. Using ST, tighten ATF filter to transmission case
   • Calculate ATF filter torque specifications using the following formula:
     1. T2 = L2/(L1 + L
     2. T1: 14 Nm (1.4 kgf-m, 10.1 ft. lbs.)
   • [Required torque setting]
     1. T2: Tightening torque
     2. L1: wrench length 2. x T1

   CAUTION
   Align ST with torque wrench while tightening ATF filter. (ST 498545400 OIL FILTER WRENCH)

4. Add ATF
