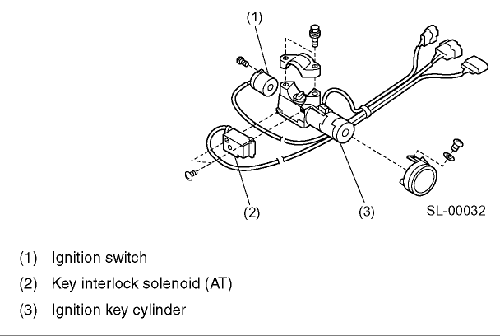

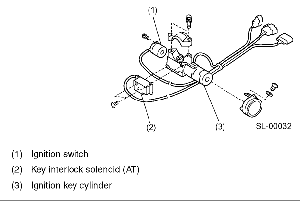

Ignition Switch (Column Mounted)

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery

   • Instrument panel lower cover
   • Upper column cover to lower column cover screws

   • Ignition cylinder mounting screws
   • Ignition cylinder assembly
   • Ignition switch connector
   • Ignition switch mounting screw
   • Ignition switch

To Install:

1. Install or connect the following
   • Switch
   • Switch screws
   • Switch connector
   • Ignition cylinder assembly
   • Ignition cylinder mounting screws
   • Upper column cover to lower column cover screws

   • Instrument panel lower cover
   • Ground cable to battery
