To Remove:
- Remove or disconnect the following
- Ground cable from battery
- Pulley belt cover bracket

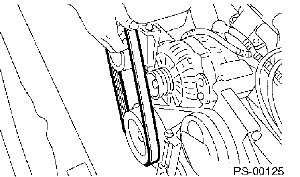

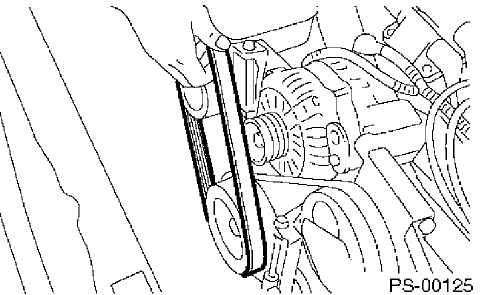

- Lock bolt and slider bolt and remove power steering pump drive V-belt
- Connector from power steering pump switch

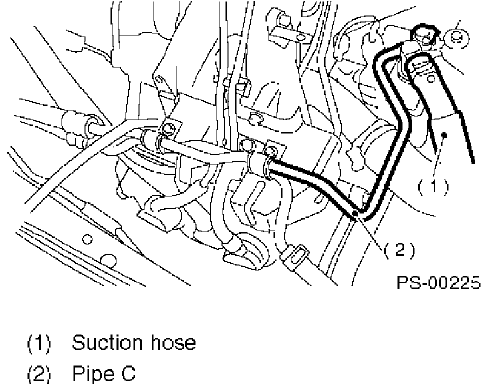

- Pipe C and suction hose from oil pump
CAUTION
Do not allow fluid from the hose end to come into contact with pulley belt. To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

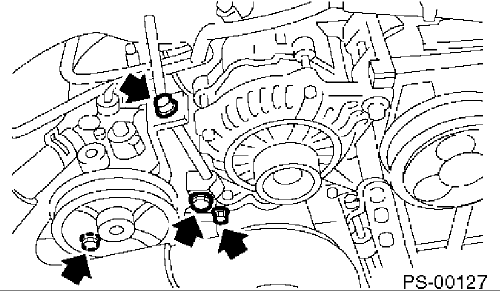

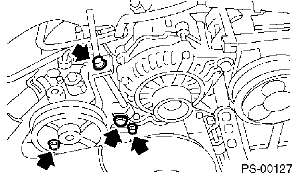

- Power steering pump bracket bolts

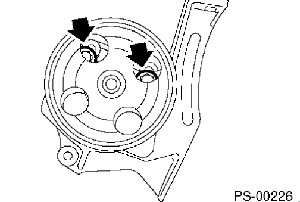

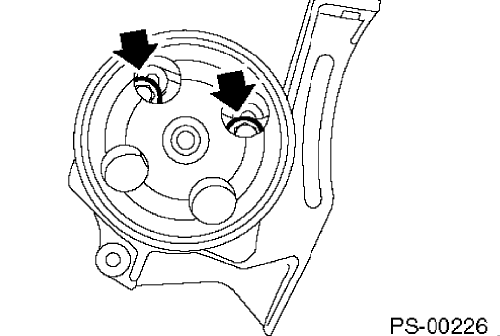

- Oil pump front side bolts by placing oil pump bracket in a vise
CAUTION
Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.
- Socket from oil pump
- Oil pump rear side bolt

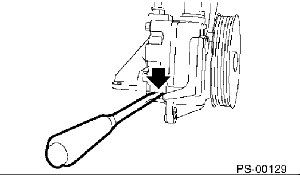

- Oil pump and bracket by inserting a screwdriver as shown in the figure
NOTE: Oil pump for TURBO model cannot be disassembled. If the oil pump is malfunctioning, replace the oil pump as an assembly.
To Install:
- Install or connect the following
- Oil pump to bracket
- Bushing (placing oil pump bracket in a vise) using a 12.7 mm (1/2) type 14- and 21 mm box wrench until it is in contact with oil pump mounting surface
CAUTION
Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.
- Oil pump and switch bracket to bracket bolt
- Socket to oil pump
- Power steering pump bracket bolts
- Interconnect pipes C and suction hose
- Torque specification: Joint nut 39.2 Nm (28.9 ft. lbs.)
CAUTION
If a hose is twisted at this step, the hose may come into contact with some other parts.
- Connector to power steering oil pressure switch
- Pulley belt to oil pump and check tension
- Torque specification: Lock bolt: 24.5 Nm (18.1 ft. lbs.)
- Tighten bolt belt tension
- Torque specification: 8 Nm (5.8 ft. lbs.)
- Install pulley belt cover bracket
- Connect ground terminal of battery
- Feed the power steering fluid
CAUTION
Never start the engine before feeding the fluid; otherwise vane pump might be seized up.
