To Remove:
- Lift-up vehicle.
- Remove or disconnect the following
- Rear wheels
- Rear seat cushion
- Console box

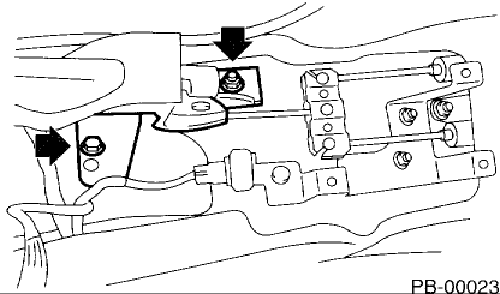

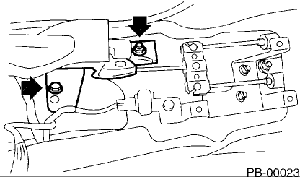

- Parking cable adjusting nut and console bracket
- Parking brake lever

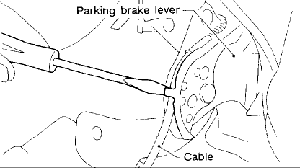

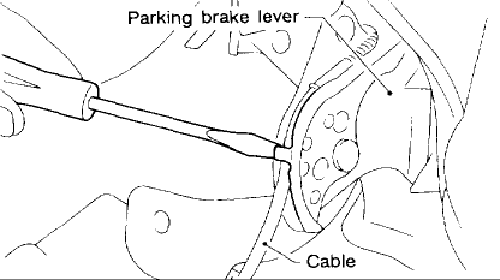

- Cable by unbending parking brake lever pawls
- Floor mat
- Clamps
- Equalizer cover

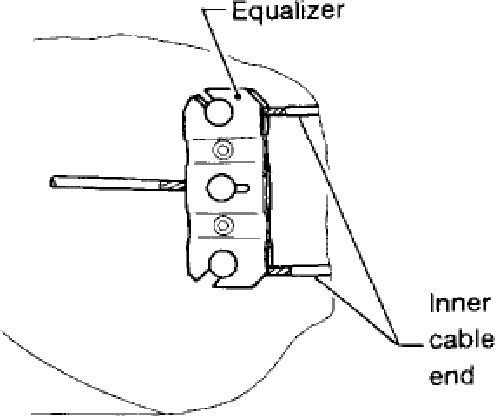

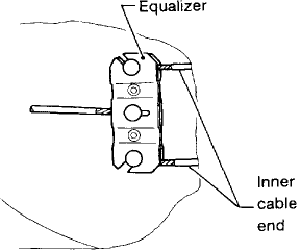

- Inner cable end from equalizer
- Parking brake cable from rear brake
- Clamp from rear brake
- Bolt and bracket from trailing link bracket
- Bolt and clamp from rear floor
- Grommet from rear floor
- Cable assembly from cabin by forcibly pulling it backward
- Parking brake cable from cable guide at rear trailing link
To Install:
- Install or connect the following
- Parking brake cable to cable guide at rear trailing link
- Cable assembly to cabin
- Grommet to rear floor
- Bolt and clamp to rear floor
- Bolt and bracket to trailing link bracket
- Clamp to rear brake
- Parking brake cable to rear brake
- Inner cable end to equalizer
- Equalizer cover
- Clamps
- Floor mat
- Cable by bending parking brake lever pawls
- Parking brake lever
- Parking cable adjusting nut and console bracket
- Console box
- Rear seat cushion
- Rear wheels
NOTE: Be sure to pass cable through cable guide inside the tunnel. Be sure to adjust the lever stroke.
