SUMMARY
OILS / COOLANTS
SPECIFIED OILS AND AMOUNTS
1. Engine oil
(1) Specified oil
Viscosity grade
 Quality grade
 0W-20

 For API certified: Products with SM “Energy Conserving” or SN “Resource Conserving” logos.
For ILSAC certified: Products with GF-4 or GF-5 “Starburst mark” displayed on the container.
For ACEA certified: Products with A3 or A5 displayed on the container.
Captions in illustration
*1
 API mark
*2
 ILSAC CERTIFICATION Mark
*3
 Recommended product
*4
 Substitute product
CAUTION:
·When replacing the oil, it is acceptable to use a different brand oil but Subaru-specified engine oil should be used.

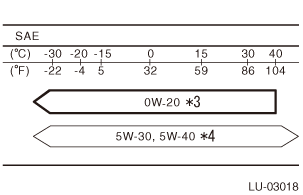

·According to the figure, use oil with appropriate viscosity for the ambient temperature.
(2) Amount
Engine type
 Only replacing oil
Filling amount (L {US qt, Imp qt})
 Oil and oil filter
Filling amount at oil replacement (L {US qt, Imp qt})
FA20
 5.2 {5.5, 4.6}
 5.4 {5.7, 4.8}
NOTE:
The filling amount at engine oil replacement is the value when oil is drained from the drain plug.
2. Oils / Coolants other than engine oil
CAUTION:
·For AT, using any ATF other than recommended product may cause malfunctions. Be sure to use the recommended product.
·For transmission gear oil and rear differential gear oil, use gear oil specified in the table below. When using the substitute product, the function and performance may be inferior.
Item [Type]
 Amount (L {US qt, Imp qt}) (reference value)
 Recommended product
 Substitute product
Coolant [FA20]
 7.5 {15.9, 6.6}
(AT)
 SUBARU Super Coolant
(Diluted type)
 -
7.2 {15.2, 6.3}
(MT)
Automatic transmission fluid
[TX6A]
 7.5 {15.9, 6.6}
 Auto fluid WS
 -
Manual transmission oil
[TL70]
 2.2 {4.7, 1.9}
 MG gear oil special II
(API GL-3, SAE 75W-90)
 GL-3 or later (75W-90)
Rear differential oil
 1.1 to 1.2 {2.3 to 2.5, 1.0 to 1.1}
(with LSD)
 Differential gear oil LX
(API GL-5, SAE 75W-85)
 GL-5 (75W-85 or 75W-90)
Clutch fluid
 -
 FMVSS No.116 DOT3 or DOT4
 -
Brake fluid
 -
 FMVSS No.116 DOT3 or DOT4
 -
A/C compressor oil
 -
 ND-OIL8
 -
