Camshaft timing oil control valve ASSY (FA20)
Components Inspection Removal / installation
ENGINE CONTROL
CAMSHAFT TIMING OIL CONTROL VALVE ASSY (FA20)

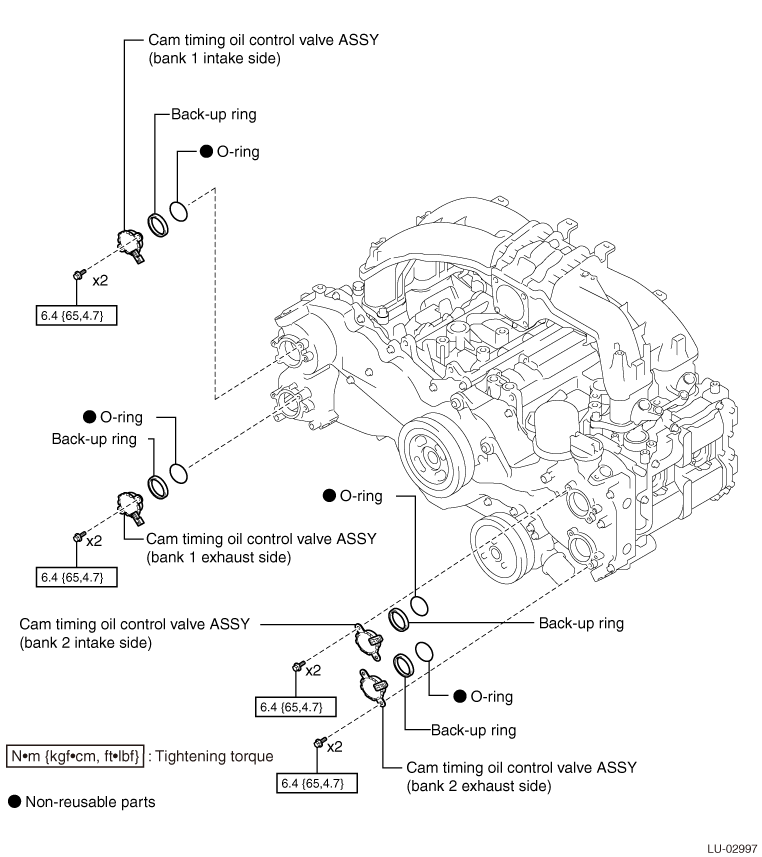

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)

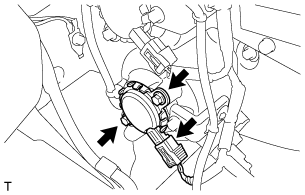

2. Removal of camshaft timing oil control valve ASSY (bank 1 intake side)
(1) Disconnect the connector for camshaft timing oil control valve ASSY.
(2) Remove 2 bolts, and remove the camshaft timing oil control valve ASSY.
(3) Remove the O-ring from the camshaft timing oil control valve ASSY.

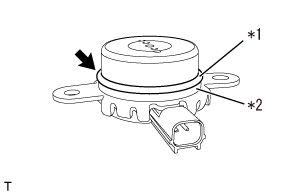

Captions in illustration
| *1 |
O-ring |
| *2 |
Back-up ring |
(4) Remove the back-up ring from the camshaft timing oil control valve ASSY.

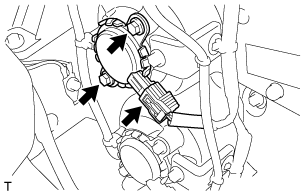

3. Removal of camshaft timing oil control valve ASSY (bank 1 exhaust side)
(1) Disconnect the connector for camshaft timing oil control valve ASSY.
(2) Remove 2 bolts, and remove the camshaft timing oil control valve ASSY.
(3) Remove the O-ring from the camshaft timing oil control valve ASSY.
Captions in illustration
| *1 |
O-ring |
| *2 |
Back-up ring |
(4) Remove the back-up ring from the camshaft timing oil control valve ASSY.
4. Removal of air cleaner case SUB-ASSY
(Refer to )
)

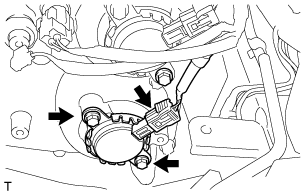

5. Removal of camshaft timing oil control valve ASSY (bank 2 intake side)
(1) Disconnect the connector for camshaft timing oil control valve ASSY.
(2) Remove 2 bolts, and remove the camshaft timing oil control valve ASSY.
(3) Remove the O-ring from the camshaft timing oil control valve ASSY.
Captions in illustration
| *1 |
O-ring |
| *2 |
Back-up ring |
(4) Remove the back-up ring from the camshaft timing oil control valve ASSY.

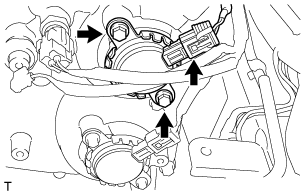

6. Removal of camshaft timing oil control valve ASSY (bank 2 exhaust side)
(1) Disconnect the connector for camshaft timing oil control valve ASSY.
(2) Remove 2 bolts, and remove the camshaft timing oil control valve ASSY.
(3) Remove the O-ring from the camshaft timing oil control valve ASSY.
Captions in illustration
| *1 |
O-ring |
| *2 |
Back-up ring |
(4) Remove the back-up ring from the camshaft timing oil control valve ASSY.
INSTALLATION
1. Installation of camshaft timing oil control valve ASSY (bank 2 exhaust side)
(1) Install the back-up ring to the camshaft timing oil control valve ASSY.
(2) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(3) Using 2 bolts, install the camshaft timing oil control valve ASSY.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(4) Connect the connector for camshaft timing oil control valve ASSY.
2. Installation of camshaft timing oil control valve ASSY (bank 2 intake side)
(1) Install the back-up ring to the camshaft timing oil control valve ASSY.
(2) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(3) Using 2 bolts, install the camshaft timing oil control valve ASSY.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(4) Connect the connector for camshaft timing oil control valve ASSY.
3. Installation of air cleaner case SUB-ASSY (Refer to )
)4. Installation of camshaft timing oil control valve ASSY (bank 1 exhaust side)
(1) Install the back-up ring to the camshaft timing oil control valve ASSY.
(2) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(3) Using 2 bolts, install the camshaft timing oil control valve ASSY.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(4) Connect the connector for camshaft timing oil control valve ASSY.
5. Installation of camshaft timing oil control valve ASSY (bank 1 intake side)
(1) Install the back-up ring to the camshaft timing oil control valve ASSY.
(2) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(3) Using 2 bolts, install the camshaft timing oil control valve ASSY.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(4) Connect the connector for camshaft timing oil control valve ASSY.
6. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}

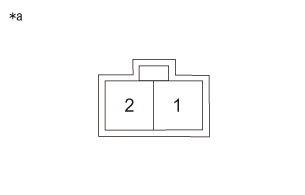

UNIT INSPECTION
