Engine control computer (FA20)
Components Removal / installation
ENGINE CONTROL
ENGINE CONTROL COMPUTER (FA20)

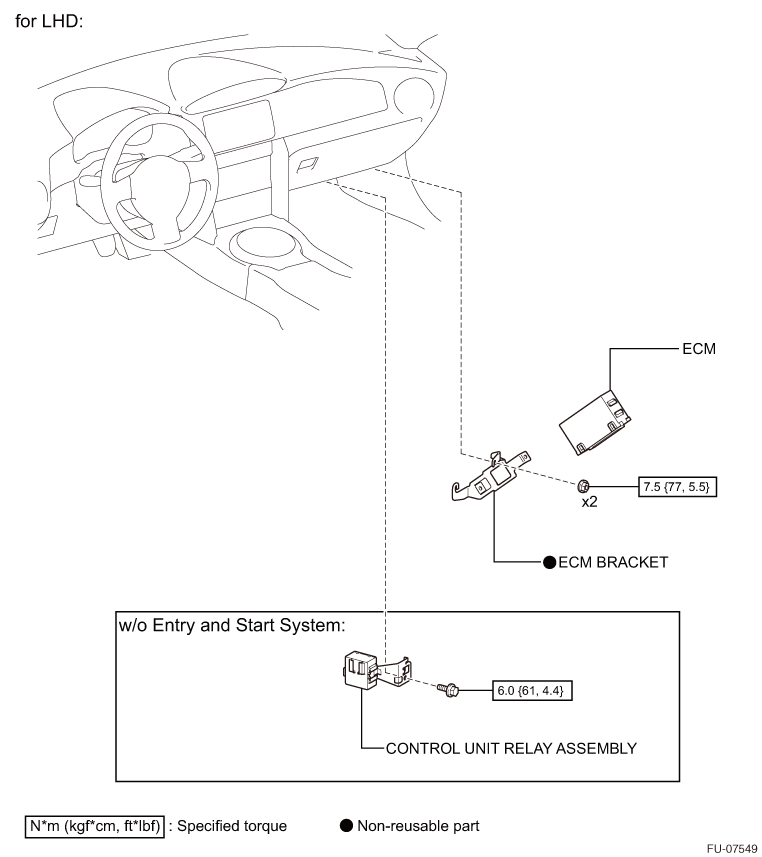

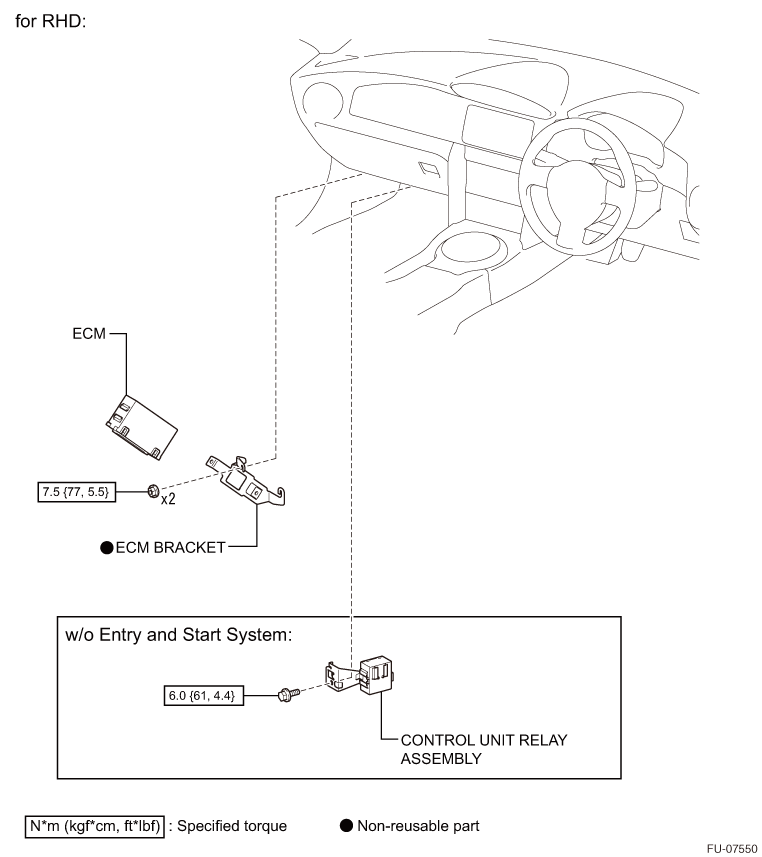

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)

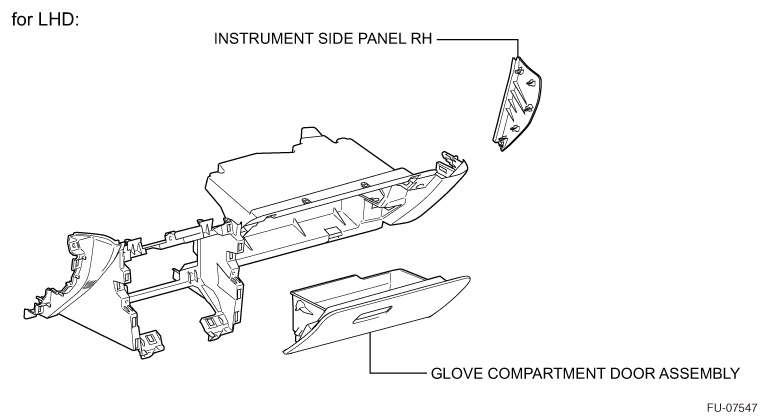

)2. Removal of instrument side panel RH (LHD model) (Refer to )

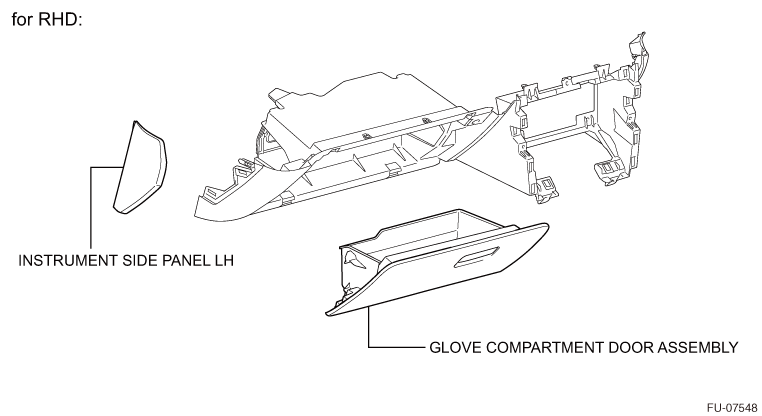

)3. Removal of instrument side panel LH (RHD model) (Refer to )
)4. Removal of glove compartment door ASSY (Refer to )
)5. Removal of control module relay ASSY (without smart entry) (Refer to )
)6. Removal of engine control computer (LHD model)

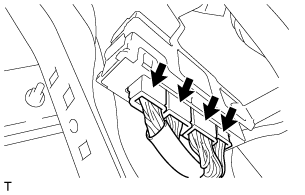

(1) Disconnect 4 connectors for engine control computer.

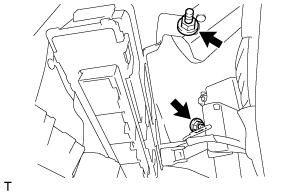

(2) Remove 2 nuts, and remove the engine control computer.
7. Removal of engine control computer (RHD model)

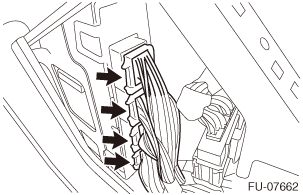

(1) Disconnect 4 connectors for engine control computer.

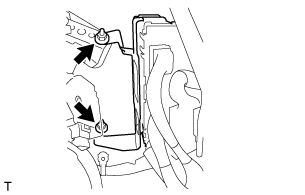

(2) Remove 2 nuts, and remove the engine control computer.
8. Removal of engine control computer bracket
(1) Release 2 claws, and remove the engine control computer bracket.
INSTALLATION
1. Installation of engine control computer bracket

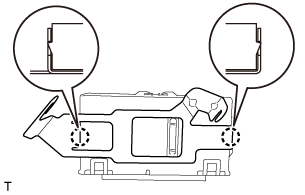

(1) Replace the bracket with a new one, engage 2 claws, and attach the engine control computer bracket to the engine control computer.
CAUTION:
·After attaching the engine control computer bracket to the engine control computer, do not remove the engine control computer bracket.
·If the engine control computer bracket has been installed to the engine control computer in the wrong direction, replace the engine control computer bracket with a new one.
·If the engine control computer bracket has been installed to the engine control computer in the wrong direction, replace the engine control computer bracket with a new one.
2. Installation of engine control computer
CAUTION:
When replacing the engine control computer, do not use the one with a wrong specification.
(1) Using 2 nuts, install the engine control computer.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
(2) Connect 4 connectors for engine control computer.
3. Installation of control module relay ASSY (without smart entry) (Refer to )
)4. Installation of glove compartment door ASSY (Refer to )
)5. Installation of instrument side panel RH (LHD model) (Refer to )
)6. Installation of instrument side panel LH (RHD model) (Refer to )
)7. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
