Accelerator pedal rod ASSY (FA20)

Components Inspection Removal / installation

ENGINE CONTROL

ACCELERATOR PEDAL ROD ASSY (FA20)

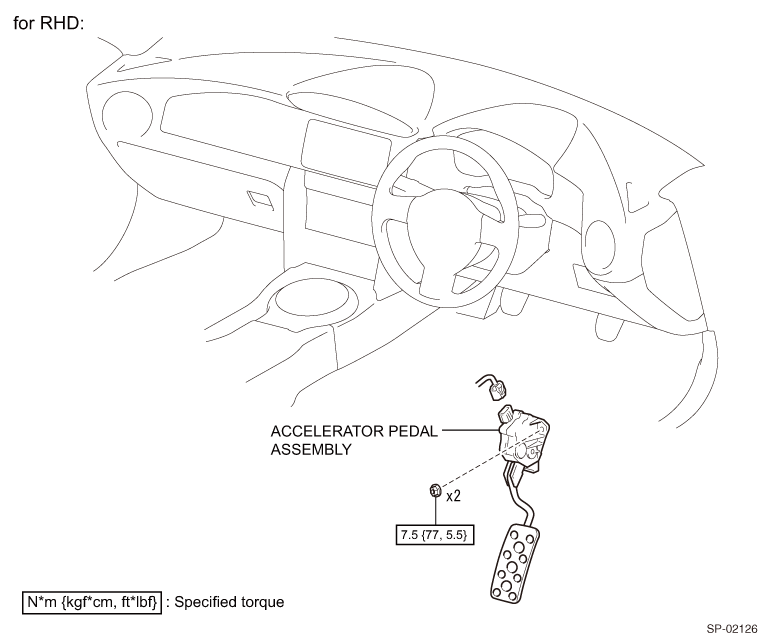

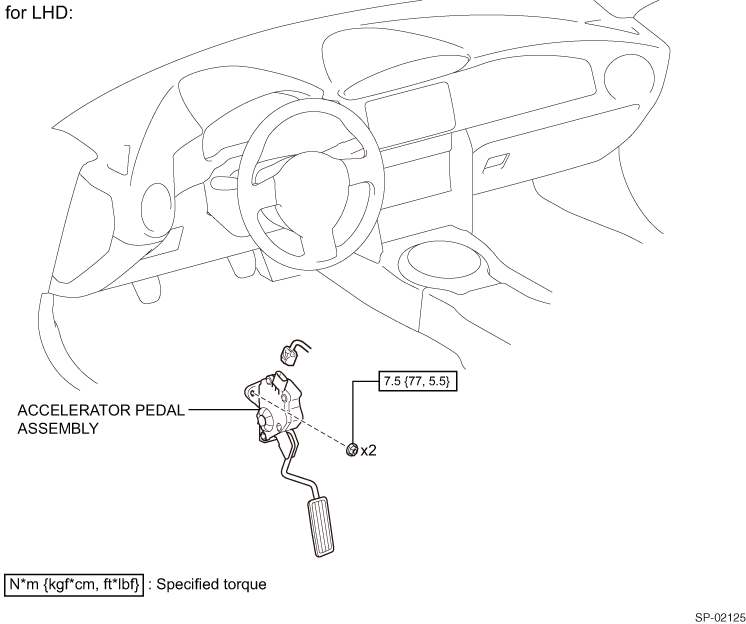

EXPLODED VIEW

REMOVAL

1. Disconnection of the battery ground terminal (Refer to )

2. Removal of accelerator pedal sensor ASSY

(1) Disconnect the connector for accelerator pedal sensor ASSY.

(2) Remove 2 nuts, and remove the accelerator pedal sensor ASSY.

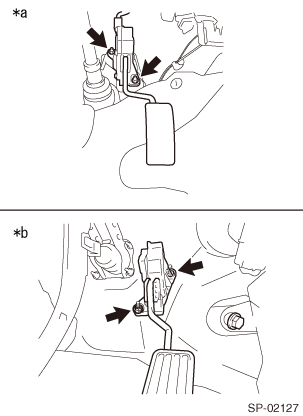

Captions in illustration

*a	LHD model
*b	RHD model

INSTALLATION

1. Installation of accelerator pedal sensor ASSY

(1) Using 2 nuts, install the accelerator pedal sensor ASSY.

Standard value:

Tightening torque=7.5N·m { 77kgf·cm} {5.5ft·lbf}

(2) Connect the connector for accelerator pedal sensor ASSY.

2. Connection of the battery ground terminal

Standard value:

Tightening torque=6.0N·m { 61kgf·cm} {4.4ft·lbf}

ON-VEHICLE INSPECTION

1. Function inspection of accelerator pedal sensor ASSY

(1) Connect the SSM3 to the DLC.

(2) Turn the ignition switch to ON.

(3) According to the display, select [ECM data monitor] → [Accelerator Sensor No1 Voltage and Accelerator Sensor No2 Voltage], and check the value when the accelerator pedal is operated.

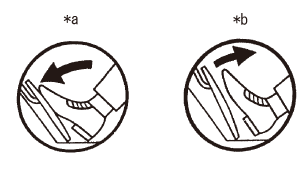

Captions in illustration

*a	Full open
*b	Full closed

Voltage

Pedal condition	Accelerator No. 1 sensor voltage	Accelerator No. 2 sensor voltage
Full closed	0.5 to 0.8 V	0.5 to 0.8 V
Full open	2.4 to 3.5 V	2.4 to 3.5 V
Full closed → Full open → Full closed	Voltage shall change continuously.	Voltage shall change continuously.
