Camshaft position sensor (FA20)
Components Removal / installation
ENGINE CONTROL
CAMSHAFT POSITION SENSOR (FA20)

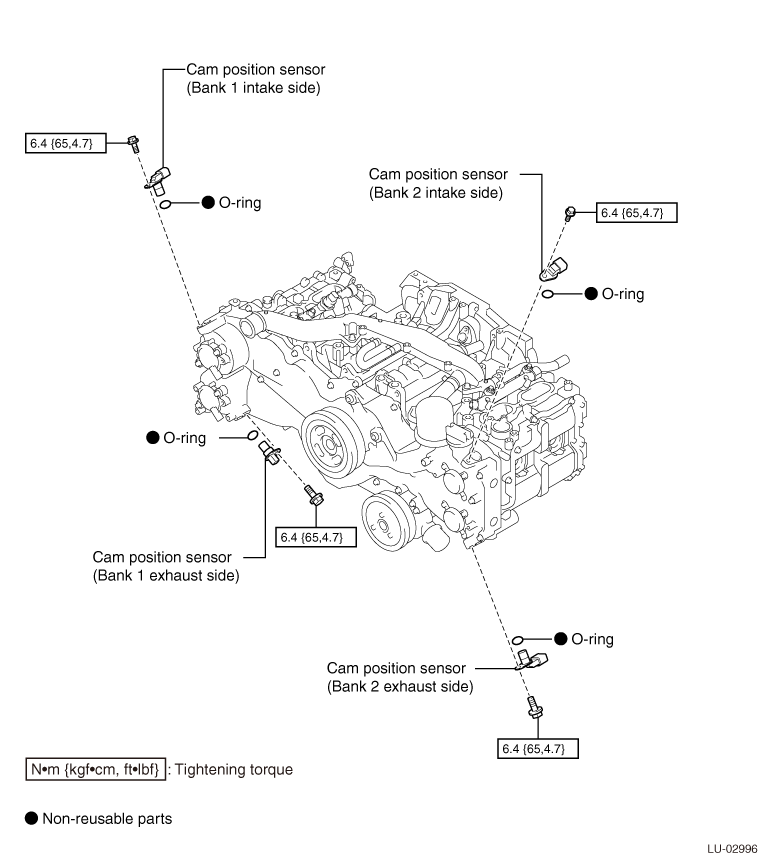

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)
2. Removal of camshaft position sensor (bank 1 intake side)

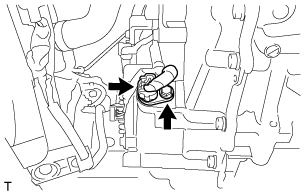

(1) Disconnect the connector for camshaft position sensor.
(2) Remove the bolt, and remove the camshaft position sensor.
(3) Remove the O-ring from the camshaft position sensor.
3. Removal of camshaft position sensor (bank 1 exhaust side)

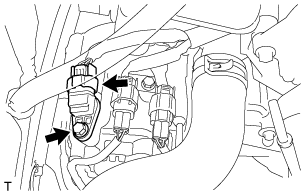

(1) Disconnect the connector for camshaft position sensor.
(2) Remove the bolt, and remove the camshaft position sensor.
(3) Remove the O-ring from the camshaft position sensor.
4. Removal of camshaft position sensor (bank 2 intake side)

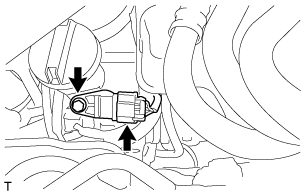

(1) Disconnect the connector for camshaft position sensor.
(2) Remove the bolt, and remove the camshaft position sensor.
(3) Remove the O-ring from the camshaft position sensor.

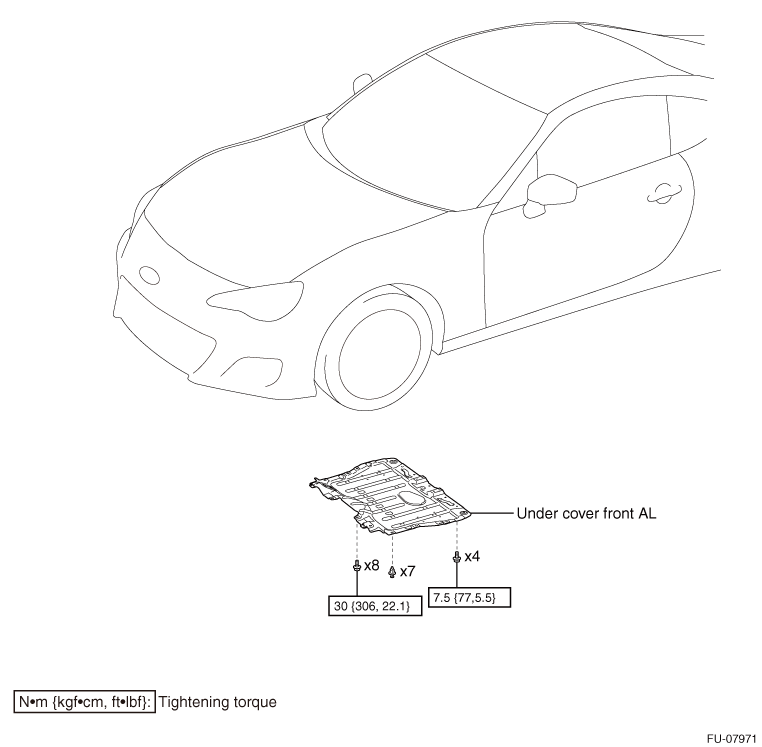

5. Removal of under cover front AL (Refer to )
)
6. Removal of camshaft position sensor (bank 2 exhaust side)

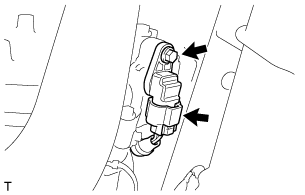

(1) Disconnect the connector for camshaft position sensor.
(2) Remove the bolt, and remove the camshaft position sensor.
(3) Remove the O-ring from the camshaft position sensor.
INSTALLATION
1. Installation of camshaft position sensor (bank 2 exhaust side)
(1) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(2) Using bolt, install the camshaft position sensor.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(3) Connect the connector for camshaft position sensor.
2. Under cover front AL installation (Refer to )
)3. Installation of camshaft position sensor (bank 2 intake side)
(1) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(2) Using bolt, install the camshaft position sensor.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(3) Connect the connector for camshaft position sensor.
4. Installation of camshaft position sensor (bank 1 exhaust side)
(1) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(2) Using bolt, install the camshaft position sensor.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(3) Connect the connector for camshaft position sensor.
5. Installation of camshaft position sensor (bank 1 intake side)
(1) Apply engine oil to new O-ring, and attach it to the camshaft timing oil control valve ASSY.
(2) Using bolt, install the camshaft position sensor.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(3) Connect the connector for camshaft position sensor.
6. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
