CRANKSHAFT POSITION SENSOR (FA20)

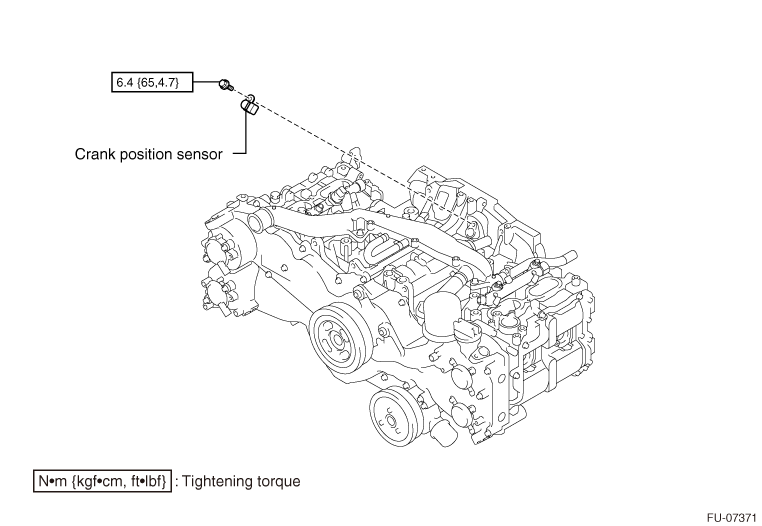

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)
2. Removal of crankshaft position sensor

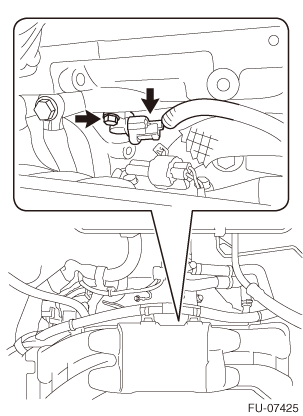

(1) Disconnect the crankshaft position sensor connector.
(2) Remove the bolt, and remove the crankshaft position sensor.
INSTALLATION
1. Installation of crankshaft position sensor
(1) Using bolt, install the crankshaft position sensor.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(2) Connect the connector for crankshaft position sensor.
2. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
