Knock control sensor (FA20)
Components Inspection Removal / installation
ENGINE CONTROL
KNOCK CONTROL SENSOR (FA20)

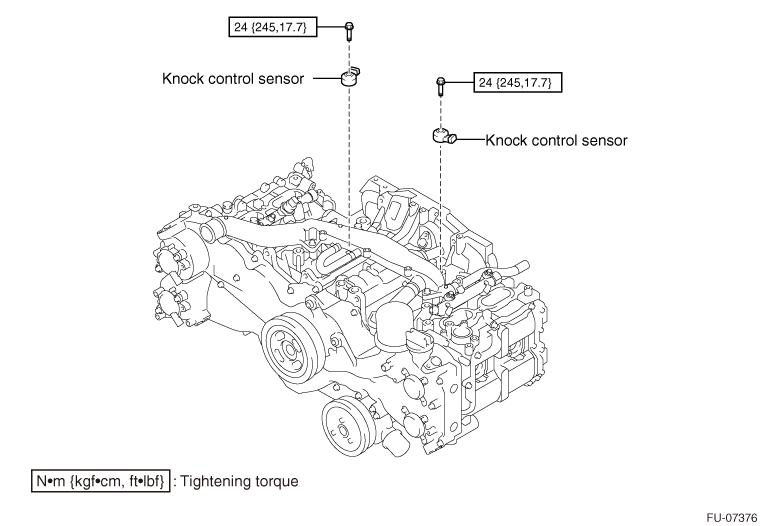

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of intake manifold (Refer to )
)

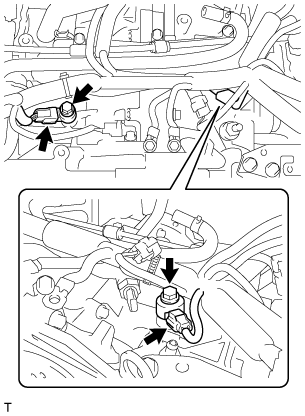

3. Removal of knock control sensor
(1) Disconnect 2 connectors for knock control sensor.
(2) Remove 2 bolts, and remove the 2 knock control sensors.
INSTALLATION

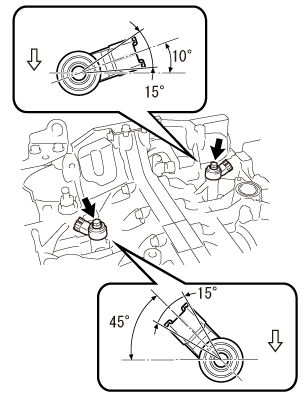

1. Installation of knock control sensor
2. Installation of intake manifold (Refer to )
)3. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
