OXYGEN SENSOR (FA20)

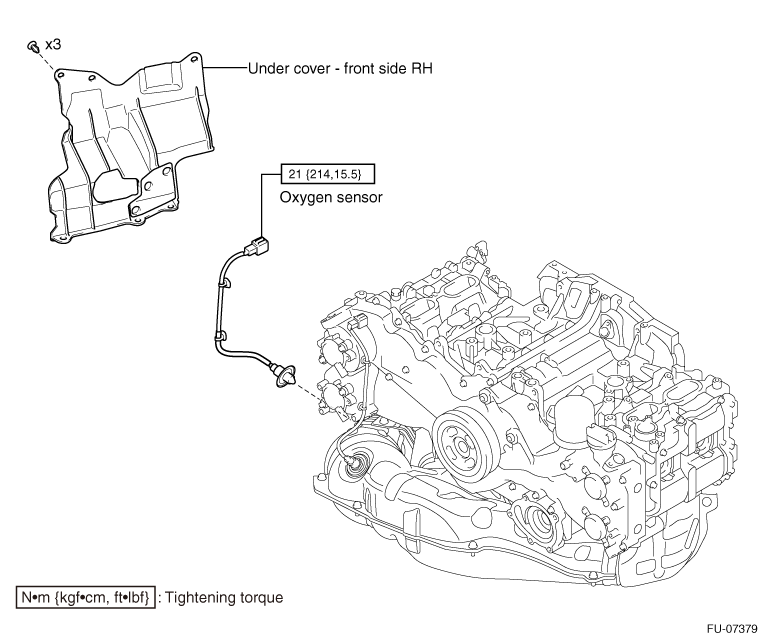

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of front tire RH
3. Removal of under cover front AL (Refer to )
)
4. Disconnection of under cover front side RH

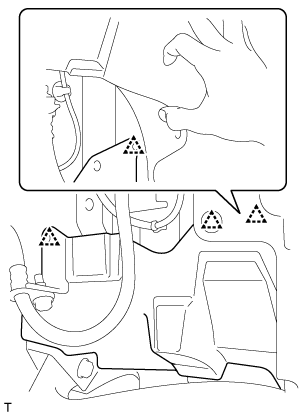

(1) Remove 3 clips, and disconnect the under cover front side RH.
5. Removal of oxygen sensor

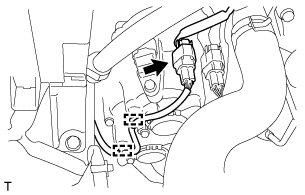

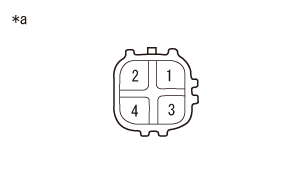

(1) Disconnect the connector for oxygen sensor and the 2 clamps.

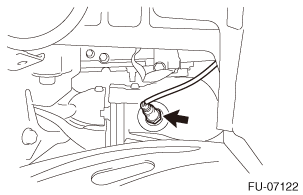

(2) Remove the oxygen sensor from the exhaust manifold.
INSTALLATION
1. Installation of oxygen sensor
(1) Install the oxygen sensor to the exhaust manifold.
Standard value:
Standard value:
Tightening torque=21N·m
{
214kgf·cm}
{15.5ft·lbf}
(2) Connect the connector for oxygen sensor and the 2 clamps.
2. Exhaust gas leakage check (Refer to )
)3. Installation of under cover front side RH
(1) Using 3 clips, install the under cover front side RH.
4. Under cover front AL installation (Refer to )
)5. Installation of front tire RH (Refer to )
)6. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
