Vacuum sensor ASSY (FA20)
Components Inspection Removal / installation
ENGINE CONTROL
VACUUM SENSOR ASSY (FA20)

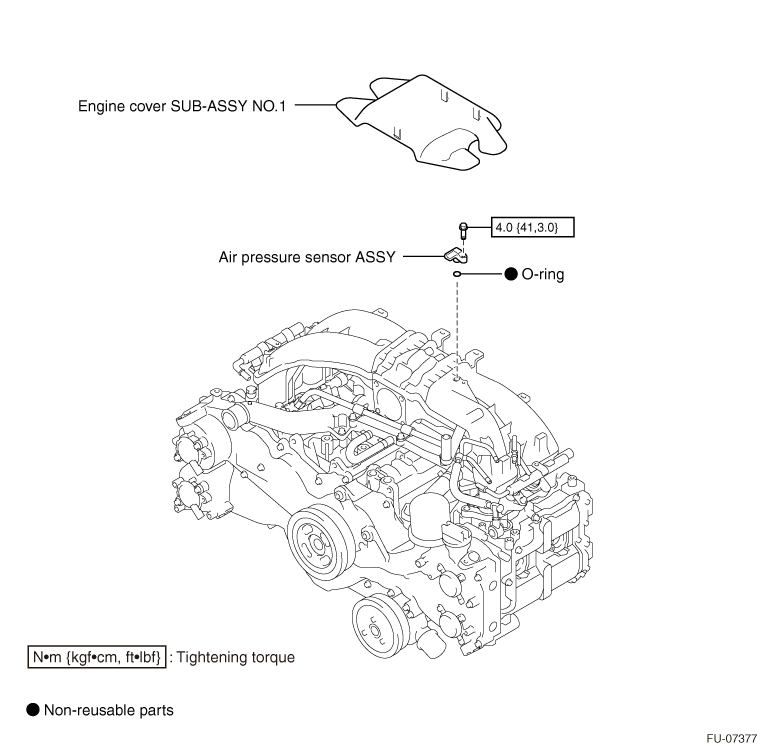

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of engine cover SUB-ASSY No.1 (Refer to )
)
3. Removal of air pressure sensor ASSY

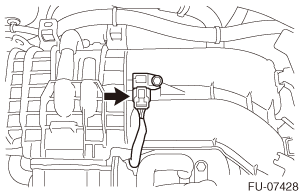

(1) Disconnect the connector for air pressure sensor ASSY.

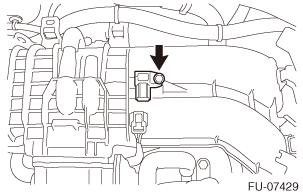

(2) Remove the bolt, and remove the air pressure sensor ASSY.

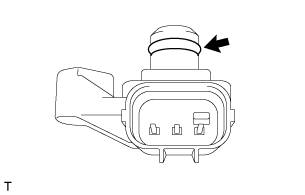

(3) Remove the O-ring from the air pressure sensor ASSY.
INSTALLATION
1. Installation of air pressure sensor ASSY
(1) Attach a new O-ring to the air pressure sensor ASSY.
(2) Apply engine oil to the O-ring.
(3) Using bolt, install the air pressure sensor ASSY.
Standard value:
Standard value:
Tightening torque=4.0N·m
{
41kgf·cm}
{3.0ft·lbf}
(4) Connect the connector for air pressure sensor ASSY.
2. Installation of engine cover SUB-ASSY NO.1 (with air conditioning) (Refer to )
)3. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
ON-VEHICLE INSPECTION
1. Inspection of air pressure sensor ASSY
(1) Connect the SSM3 to the DLC.
(2) Turn the ignition switch to ON with engine stopped.
(3) Using SSM3, select the following menu items: [Power train/Engine/Data monitor/Intake manifold pressure]
(4) Read the data monitor.
Criteria
: Almost equal to atmospheric pressure
NOTE:
·Standard atmospheric pressure is 101 kPa {758 mmHg, 29.8 inHg, 14.6 psig}.
·Atmospheric pressure decreases by 1 kPa {8 mmHg, 0.3 inHg, 0.1 psig} as the altitude increases by 100 m {328 ft}.
·Atmospheric pressure varies according to the weather.
·Atmospheric pressure decreases by 1 kPa {8 mmHg, 0.3 inHg, 0.1 psig} as the altitude increases by 100 m {328 ft}.
·Atmospheric pressure varies according to the weather.
