Cylinder head gasket (FA20)
Components Removal / installation
ENGINE MECHANICAL
CYLINDER HEAD GASKET (FA20)

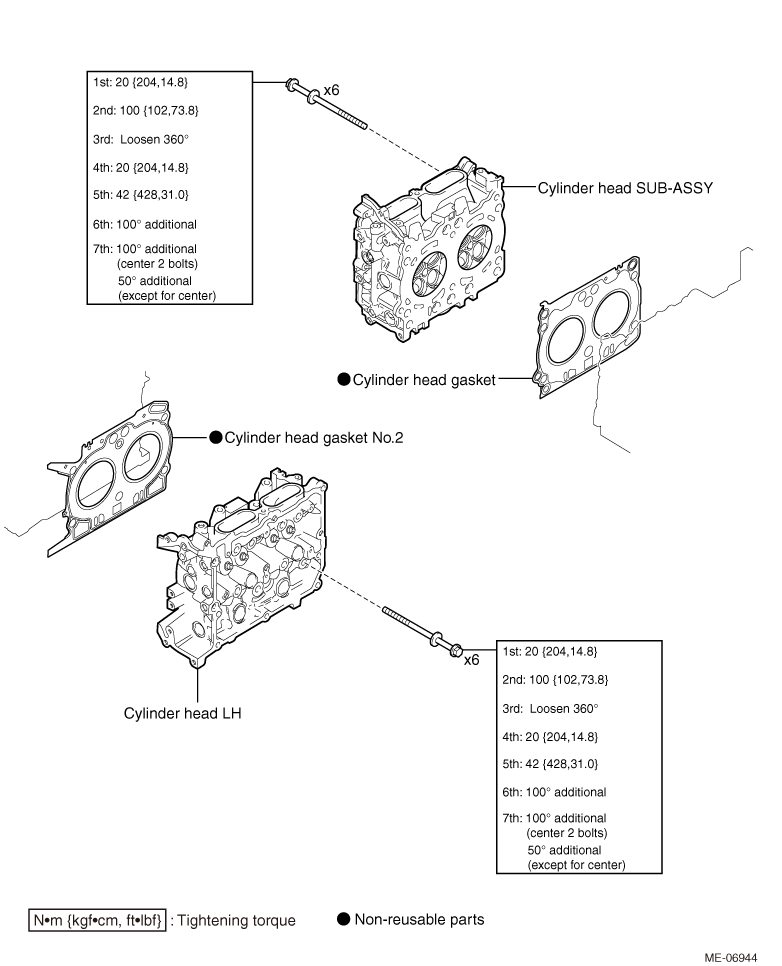

EXPLODED VIEW
REMOVAL
1. Camshaft housing SUB-ASSY RH removal
(Refer to
)
)
2. Cylinder head SUB-ASSY removal

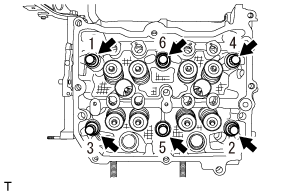

(1) Loosen the six cylinder head bolts equally in the order as shown in the figure.
(2) Tap the cylinder head SUB-ASSY with a plastic hammer to separate it from cylinder block.
(3) Remove the cylinder head SUB-ASSY.
CAUTION:
Be careful not to scratch the mating surface of cylinder head and cylinder block.
3. Cylinder head gasket removal
(1) Remove the cylinder head gasket.
4. Camshaft housing SUB-ASSY LH removal
(Refer to )
)
5. Cylinder head LH removal

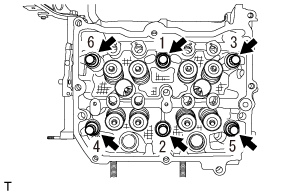

(1) Loosen the six cylinder head bolts equally in the order as shown in the figure.
(2) Tap the cylinder head LH with a plastic hammer to separate it from cylinder block.
(3) Remove the cylinder head LH.
CAUTION:
Be careful not to scratch the mating surface of cylinder head and cylinder block.
6. Cylinder head gasket NO. 2 removal
(1) Remove the cylinder head gasket NO. 2.
INSTALLATION
1. Cylinder head gasket NO. 2 installation
(1) Operate the engine stand, and make the bank 2 side face upward.
(2) Clean the bolt holes in the cylinder block (block 2 side).
CAUTION:
To avoid erroneous tightening of the bolts, clean out the bolt holes sufficiently by blowing with compressed air to eliminate engine coolant etc.

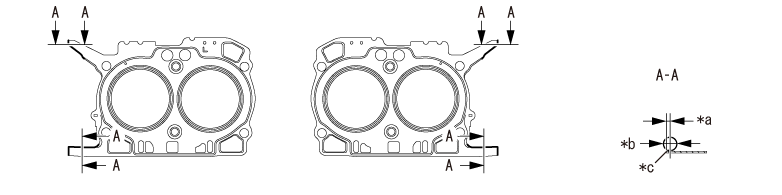

(3) Apply THREE BOND 1217G or equivalent to both sides of a new cylinder head gasket NO. 2 as shown in the figure.
Captions in illustration
| *a |
0 to 1.0 mm {0 to 0.039 in} |
*b |
Diameter: 2.0 to 4.0 mm {0.079 to 0.158 in} |
| *c |
Gasket edge |
- |
- |
CAUTION:
·Clean and degrease the installation surface.
·Install within 5 min. after applying liquid gasket.
·Install within 5 min. after applying liquid gasket.
(4) Install the cylinder head gasket NO. 2.
2. Cylinder head LH installation
(1) Clean the cylinder head bolt threads and apply sufficient engine oil to the washer and cylinder head bolts threads.
(2) Set the cylinder block (bank 2 side) on the cylinder head LH.

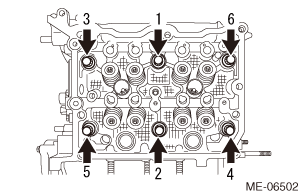

(3) Tighten the six cylinder head bolts in the order as shown in the figure.
Standard value:
Standard value:
Tightening torque=20N·m
{
204kgf·cm}
{14.8ft·lbf}
(4) Retighten the six cylinder head bolts in the same order.
Standard value:
Standard value:
Tightening torque=100N·m
{
102kgf·cm}
{73.8ft·lbf}
CAUTION:
If the bolt makes stick-slip sound during tightening, clean the bolt holes and installation surface, dry them completely, and then repeat the steps from the application of seal gasket.
NOTE:
When repeating the steps, the cylinder head gasket can be reused.
(5) Loosen the six cylinder head bolts by 360° in the order as shown in the figure.
(6) Tighten the six cylinder head bolts in the order as shown in the figure.
Standard value:
Standard value:
Tightening torque=20N·m
{
204kgf·cm}
{14.8ft·lbf}
(7) Retighten the six cylinder head bolts in the same order.
Standard value:
Standard value:
Tightening torque=42N·m
{
428kgf·cm}
{31.0ft·lbf}

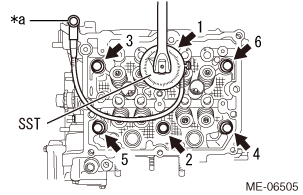

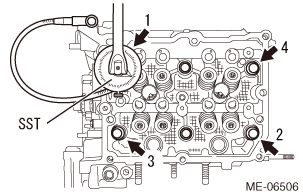

(8) Retighten the six cylinder head bolts by 100° using the SST in the order as shown in the figure.
SST
18854AA000
Captions in illustration
| *a |
Temporary bolt |
NOTE:
Install a temporary bolt to secure the SST as required.

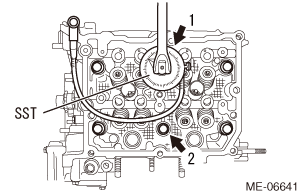

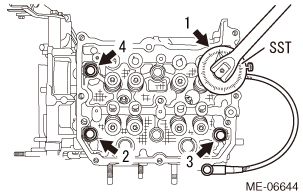

(9) Retighten the two cylinder head bolts by 100° using the SST in the order as shown in the figure.
SST
18854AA000
(10) Retighten the four cylinder head bolts by 50° using the SST in the order as shown in the figure.
SST
18854AA000
3. Camshaft housing SUB-ASSY LH installation
(Refer to )
)4. Cylinder head gasket installation
(1) Operate the engine stand, and make the bank 1 side face upward.
(2) Clean the bolt holes in the cylinder block (block 1 side).
CAUTION:
To avoid erroneous tightening of the bolts, clean out the bolt holes sufficiently by blowing with compressed air to eliminate engine coolant etc.

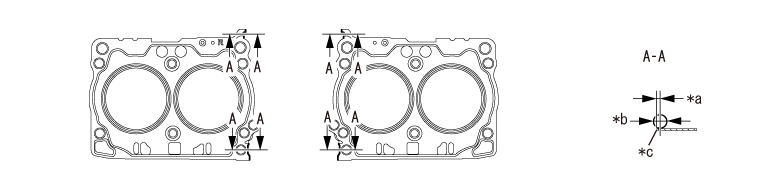

(3) Apply THREE BOND 1217G or equivalent to both sides of a new cylinder head gasket as shown in the figure.
Captions in illustration
| *a |
0 to 1.0 mm {0 to 0.039 in} |
*b |
Diameter: 2.0 to 4.0 mm {0.079 to 0.158 in} |
| *c |
Gasket edge |
- |
- |
CAUTION:
·Clean and degrease the installation surface.
·Install within 5 min. after applying liquid gasket.
·Install within 5 min. after applying liquid gasket.
(4) Attach the cylinder head gasket.
5. Cylinder head SUB-ASSY installation
(1) Clean the cylinder head bolt threads and apply sufficient engine oil to the washer and cylinder head bolts threads.
(2) Set the cylinder block (bank 1 side) on the cylinder head SUB-ASSY.
(3) Tighten the six cylinder head bolts in the order as shown in the figure.
Standard value:
Standard value:
Tightening torque=20N·m
{
204kgf·cm}
{14.8ft·lbf}
(4) Retighten the six cylinder head bolts in the same order.
Standard value:
Standard value:
Tightening torque=100N·m
{
102kgf·cm}
{73.8ft·lbf}
CAUTION:
If the bolt makes stick-slip sound during tightening, clean the bolt holes and installation surface, dry them completely, and then repeat the steps from the application of seal gasket.
NOTE:
When repeating the steps, the cylinder head gasket can be reused.
(5) Loosen the six cylinder head bolts by 360° in the order as shown in the figure.
(6) Tighten the six cylinder head bolts in the order as shown in the figure.
Standard value:
Standard value:
Tightening torque=20N·m
{
204kgf·cm}
{14.8ft·lbf}
(7) Retighten the six cylinder head bolts in the same order.
Standard value:
Standard value:
Tightening torque=42N·m
{
428kgf·cm}
{31.0ft·lbf}
(8) Retighten the six cylinder head bolts by 100° using the SST in the order as shown in the figure.
SST
18854AA000
Captions in illustration
| *a |
Temporary bolt |
NOTE:
Install a temporary bolt to secure the SST as required.

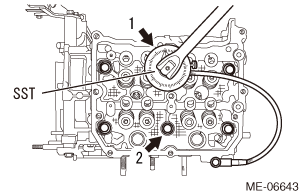

(9) Retighten the two cylinder head bolts by 100° using the SST in the order as shown in the figure.
SST
18854AA000
(10) Retighten the four cylinder head bolts by 50° using the SST in the order as shown in the figure.
SST
18854AA000
6. Camshaft housing SUB-ASSY RH installation
(Refer to )
)
