Injector ASSY (FA20 / port fuel injection)
Components Inspection Removal / installation
FUEL
INJECTOR ASSY (FA20 / PORT FUEL INJECTION)

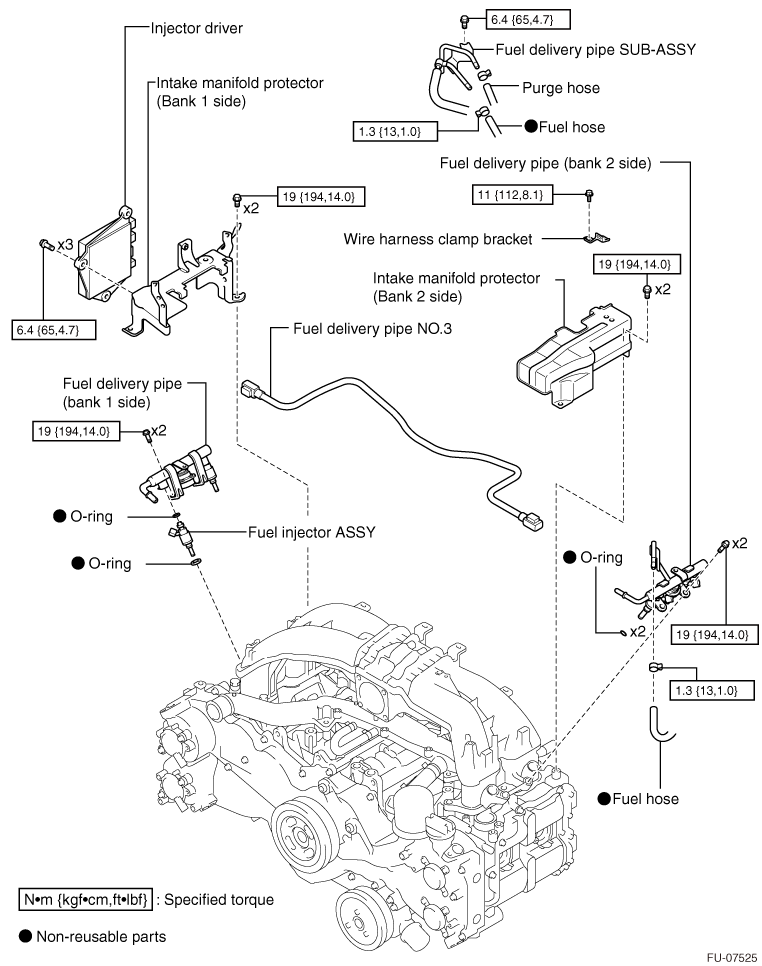

EXPLODED VIEW
REMOVAL
1. Fuel spill prevention procedure (Refer to
)
)2. Disconnection of the battery ground terminal (Refer to )
)3. Chamber ASSY removal
(Refer to )
)4. Removal of injector driver (Refer to )
)

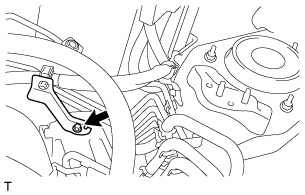

5. Intake manifold protector (bank 2 side) removal
(1) Remove the bolt and disconnect the wiring harness clamp bracket.
(2) Remove the 2 bolts, and remove the intake manifold protector (bank 2 side).
6. Intake manifold protector (bank 1 side) removal

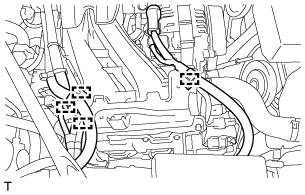

(1) Release the four clamps and disconnect the wiring harness.
(2) Remove the 2 bolts, and remove the intake manifold protector (bank 1 side).

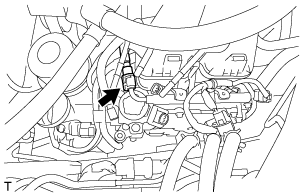

7. Disconnecting the fuel hose

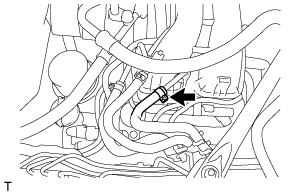

(1) Loosen the clamp, and disconnect the fuel hose.
CAUTION:
·Before starting the work, remove the foreign matters such as dirt on the fuel hose connection.
·Be careful not to spill fuel.
·Catch the fuel from fuel hoses using a container.
·After the fuel hose is disconnected, protect the connection part with a plastic bag or something similar.
·Be careful not to spill fuel.
·Catch the fuel from fuel hoses using a container.
·After the fuel hose is disconnected, protect the connection part with a plastic bag or something similar.
8. Disconnection of fuel delivery pipe SUB-ASSY (Refer to )
)
9. Fuel delivery pipe (bank 2 side) removal
(1) Disconnect the two fuel injector ASSY connectors.
(2) Release the clamp and disconnect the wiring harness.
(3) Disconnect the fuel pump connector.
(4) Disconnect the fuel delivery pipe NO. 3 from the fuel delivery pipe (bank 2 side). (Refer to )
)

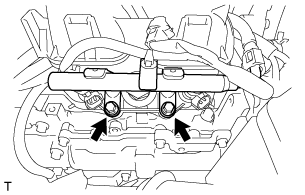

(5) Remove the 2 bolts and remove the fuel delivery pipe (bank 2 side) by pulling up it along the axis line of fuel injector ASSY.
10. Fuel delivery pipe (bank 1 side) removal
(1) Disconnect the two fuel injector ASSY connectors.
(2) Release the clamp and disconnect the wiring harness.
(3) Disconnect the fuel delivery pipe NO. 3 from the fuel delivery pipe (bank 1 side). (Refer to )
)

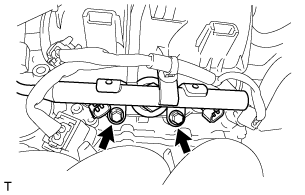

(4) Remove the 2 bolts and remove the fuel delivery pipe (bank 1 side) by pulling up it along the axis line of fuel injector ASSY.

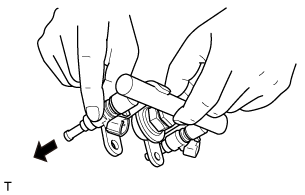

11. Fuel injector ASSY removal
INSTALLATION

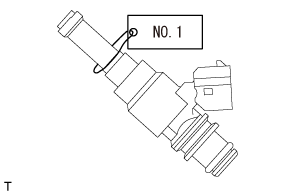

1. Fuel injector ASSY installation (low pressure side)

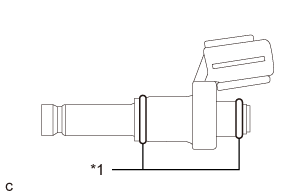

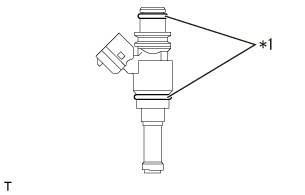

(1) Apply gasoline to two new O-rings and install them to the fuel injector ASSY.
CAUTION:
Make sure that there are no damage or foreign matter in the O-ring grooves of fuel injector ASSY.
Captions in illustration
| *1 |
New O-rings |
(2) Install the fuel injector ASSY to the fuel delivery pipe.
CAUTION:
·Make sure that there are no foreign matter or scratches on the insertion portion of fuel delivery pipe.
·Be careful not to twist the O-ring.
·After the fuel delivery pipe is installed, make sure that it can be rotated relatively lightly. If it cannot be rotated lightly, remove the fuel injector ASSY and repeat the work after replacing the O-rings with new ones.
·Be careful not to twist the O-ring.
·After the fuel delivery pipe is installed, make sure that it can be rotated relatively lightly. If it cannot be rotated lightly, remove the fuel injector ASSY and repeat the work after replacing the O-rings with new ones.
2. Fuel delivery pipe (bank 1 side) installation
(1) Install the fuel delivery pipe (bank 1) to the intake manifold by moving it along the axis line of fuel injector ASSY.
(2) Tighten the two bolts.
Standard value:
Standard value:
Tightening torque=19N·m
{
194kgf·cm}
{14.0ft·lbf}
(3) Connect the fuel delivery pipe NO. 3 to the fuel delivery pipe (bank 1 side). (Refer to )
)(4) Connect the injector ASSY connector to engage the clamp.
3. Fuel delivery pipe (bank 2 side) installation
(1) Install the fuel delivery pipe (bank 2) to the intake manifold by moving it along the axis line of fuel injector ASSY.
(2) Tighten the two bolts.
Standard value:
Standard value:
Tightening torque=19N·m
{
194kgf·cm}
{14.0ft·lbf}
(3) Connect the fuel pump connector.
(4) Connect the fuel delivery pipe NO. 3 to the fuel delivery pipe (bank 2 side). (Refer to )
)(5) Connect the fuel injector ASSY connector to engage the clamp.
4. Connection of fuel delivery pipe SUB-ASSY (Refer to )
)5. Fuel hose connection
(1) Using the hose clamp, install a new fuel hose.
Standard value:
Standard value:
Tightening torque=1.3N·m
{
13kgf·cm}
{1.0ft·lbf}
6. Intake manifold protector (bank 2 side) installation
(1) Using 2 bolts, install the intake manifold protector (bank 2 side).
Standard value:
Standard value:
Tightening torque=19N·m
{
194kgf·cm}
{14.0ft·lbf}
(2) Install the wiring harness clamp bracket with the bolt.
Standard value:
Standard value:
Tightening torque=11N·m
{
112kgf·cm}
{8.1ft·lbf}
7. Intake manifold protector (bank 1 side) installation
(1) Using 2 bolts, install the intake manifold protector (bank 1 side).
Standard value:
Standard value:
Tightening torque=19N·m
{
194kgf·cm}
{14.0ft·lbf}
(2) Engage the four clamps and connect the wiring harness.
8. Installation of injector driver (Refer to )
)9. Chamber ASSY installation
(Refer to )
)10. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
UNIT INSPECTION

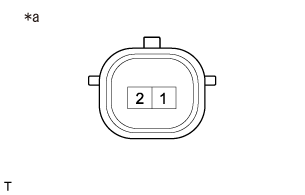

1. Fuel injector ASSY check
CAUTION:
This procedure must be used only when judging short circuit and open circuit. It cannot be used for judging defective operation.
