Fuel pressure sensor (FA20)
Components Inspection Removal / installation
FUEL
FUEL PRESSURE SENSOR (FA20)

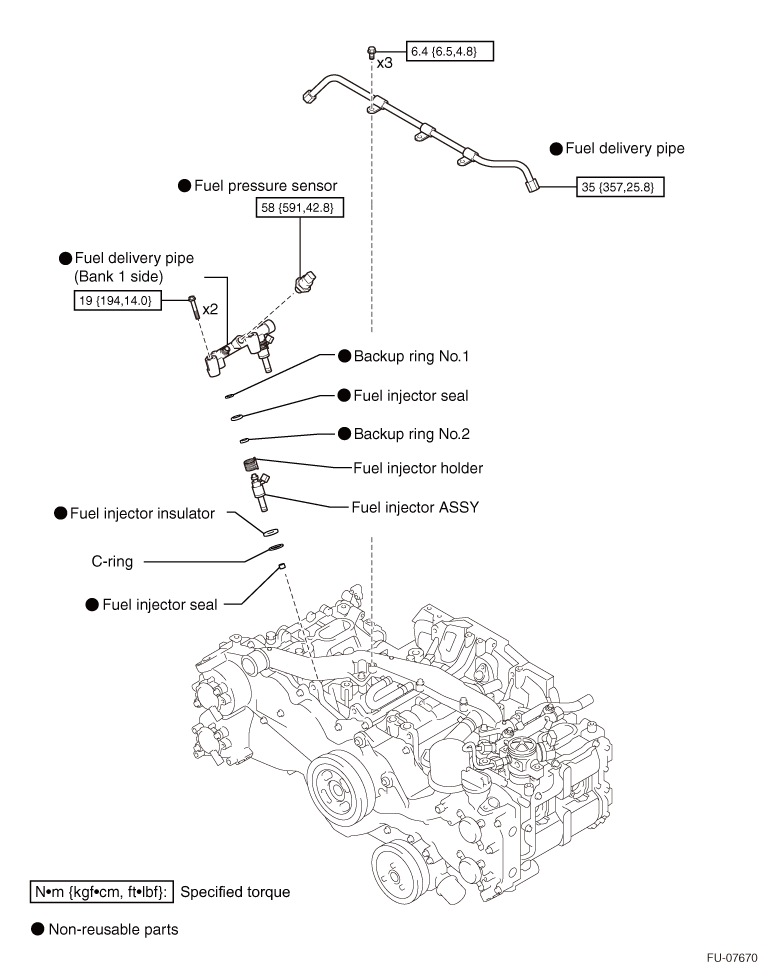

EXPLODED VIEW

REMOVAL
2. Fuel delivery pipe removal
(1) Remove the 3 bolts.
(2) Remove the fuel delivery pipe.
3. Fuel delivery pipe (bank 1 side) removal
(1) Disconnect the fuel pressure sensor connector and two fuel injector connectors.
(2) Remove the two bolts and remove fuel delivery pipe (bank 1 side).

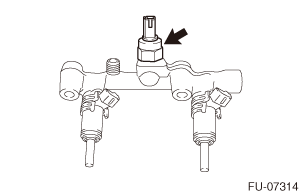

4. Fuel pressure sensor removal
(1) Remove the fuel pressure sensor from the fuel delivery pipe (bank 1 side).
INSTALLATION
2. Fuel delivery pipe (bank 1 side) and fuel pressure sensor installation
(1) Install the fuel delivery pipe (bank 1 side) with the two bolts.
Standard value:
Standard value:
Tightening torque=19N·m
{
194kgf·cm}
{14.0ft·lbf}
(2) Temporarily install a new fuel pressure sensor to the fuel delivery pipe (bank 1 side) until it can be turned by hand.
(3) Fuel the fuel pressure sensor.
Standard value:
Standard value:
Tightening torque=58N·m
{
591kgf·cm}
{42.8ft·lbf}
CAUTION:
·There must be no oil on the threaded portions of fuel pressure sensor and fuel delivery pipe (bank 1 side).
·Do not allow foreign matter to get in when installing the fuel pressure sensor.
·Do not retighten (or recheck the tightening torque of) the fuel pressure sensor after it is tightened once.
·Do not allow foreign matter to get in when installing the fuel pressure sensor.
·Do not retighten (or recheck the tightening torque of) the fuel pressure sensor after it is tightened once.
(4) Connect the two fuel injector connectors and fuel pressure sensor connector.
3. Fuel delivery pipe installation
(1) Temporarily install a new fuel delivery pipe.
(2) Temporarily install the fuel delivery pipe with the three bolts.
(3) Tighten the three bolts.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(4) Tighten the fuel delivery pipe.
Standard value:
Standard value:
Tightening torque=35N·m
{
357kgf·cm}
{25.8ft·lbf}
UNIT INSPECTION
1. Fuel pressure sensor check
(1) Output voltage check
(a) Measure the voltage between the terminals.
Voltage
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 2(VOUT) - 1(GND) |
Apply 5 V voltage between the terminals 3 (VCC) and 1 (GND). |
Approx. 0.5 V |

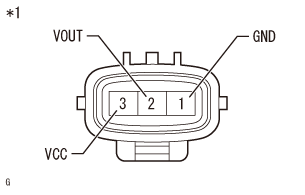

Captions in illustration
| *1 |
Connector not connected (Fuel pressure sensor) |
CAUTION:
·Wrong connection of the inspection terminals may damage the fuel pressure sensor. Pay special attention to the connection work.
·Do not apply voltage of 6 V or higher between the terminals 3 (VCC) and 1 (GND).
·Do not apply voltage of 6 V or higher between the terminals 3 (VCC) and 1 (GND).
NOTE:
If a stabilized power source is not available, use nickel hydride batteries (1.2 V × 4) etc.
