Injector driver (FA20)
Components Removal / installation
FUEL
INJECTOR DRIVER (FA20)

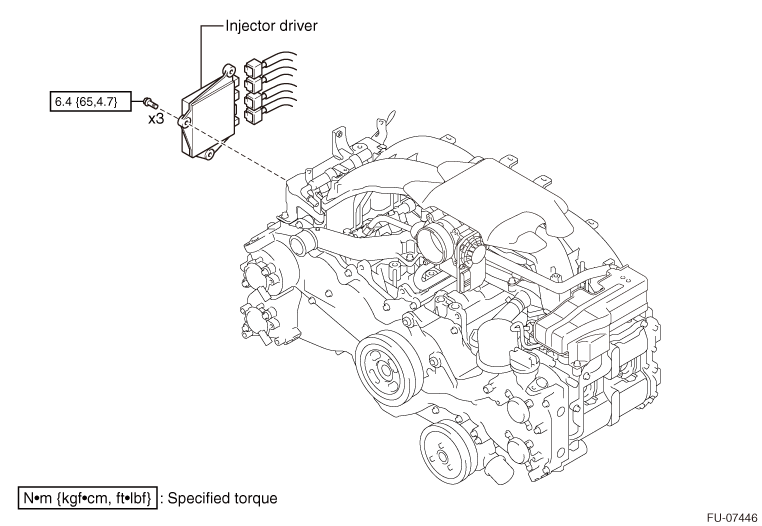

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)
2. Injector driver removal

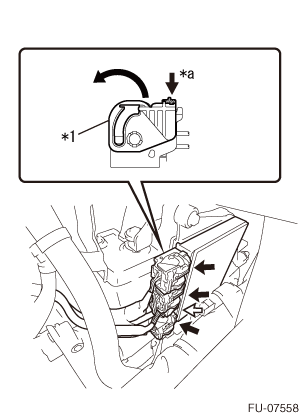

(1) Move the lock lever in the direction of arrow to unlock the three connectors.
Captions in illustration
| *1 |
Lock lever |
| *a |
Unlock |
 |
Connector with lock |
 |
Normal connector |
(2) Disconnect the three connectors with lock and normal connector from the injector driver.
(3) Remove the three bolts and remove the injector driver.
CAUTION:
Do not apply any impact to the injector driver.
INSTALLATION
1. Injector driver installation
CAUTION:
·Do not apply any impact to the injector driver.
·When the mounting surface of injector drive is dirty, faulty grounding may be caused. Degrease and wash the mounting surfaces of injector driver and engine before installing the injector driver.
·When the mounting surface of injector drive is dirty, faulty grounding may be caused. Degrease and wash the mounting surfaces of injector driver and engine before installing the injector driver.
(1) Install the injector driver with the three bolts.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(2) Connect the three connectors with lock and normal connector to the injector driver and move the lock lever as shown in the figure to lock the three connectors with lock.
Captions in illustration
| *1 |
Lock lever |
|
|
Connector with lock |
|
|
Normal connector |
CAUTION:
For connector with lock, connect the connector securely to lock it.
2. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
