Fuel pump control computer (FA20)
Components Removal / installation
FUEL
FUEL PUMP CONTROL COMPUTER (FA20)

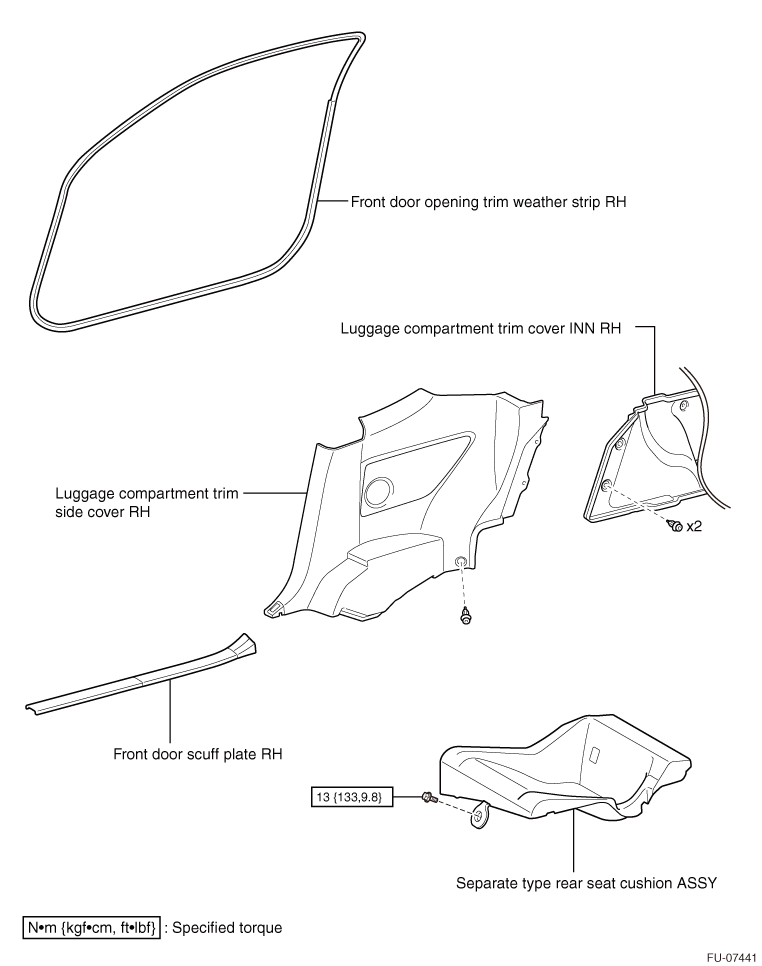

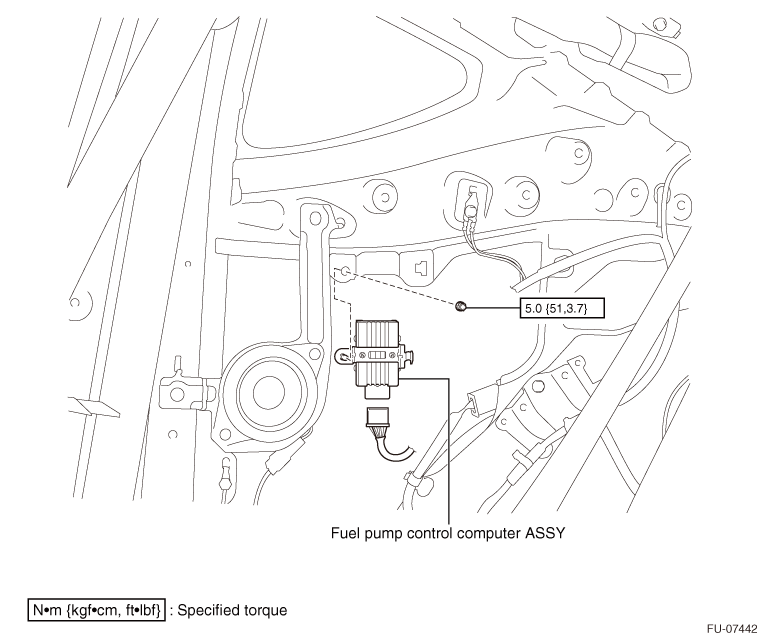

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Disconnection of front door opening trim weather strip RH (Refer to )
)3. Removal of front door scuff plate RH (Refer to )
)4. Removal of separate type rear seat cushion ASSY (Refer to )
)5. Removal of luggage compartment trim cover INN RH (Refer to )
)6. Removal of luggage compartment trim side cover RH (Refer to )
)
7. Removal of fuel pump control computer ASSY

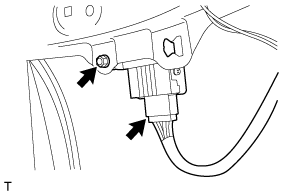

(1) Disconnect the fuel pump control computer connector.
(2) Remove the nut.
(3) Push in the stud bolt of fuel pump control computer ASSY.

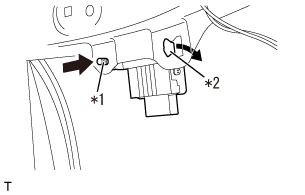

Captions in illustration
| *1 |
Stud bolt |
| *2 |
Bracket |
(4) Slide the fuel pump control computer ASSY toward the rear of the vehicle to disengage the bracket and remove the fuel pump control computer ASSY.
CAUTION:
If impact is applied to the fuel pump control computer ASSY, do not reuse it.
INSTALLATION
1. Installation of fuel pump control computer ASSY
(1) Engage the bracket of fuel pump control computer ASSY to the body mounting hole and pass the stud bolt through the body hole.
(2) Install the fuel pump control computer ASSY with the nut.
Standard value:
Standard value:
Tightening torque=5.0N·m
{
51kgf·cm}
{3.7ft·lbf}
CAUTION:
If impact is applied to the fuel pump control computer ASSY, do not reuse it.
(3) Connect the fuel pump control computer connector.
2. Installation of luggage compartment trim side cover RH (Refer to )
)3. Installation of luggage compartment trim cover INN RH (Refer to )
)4. Installation of separate type rear seat cushion ASSY (Refer to )
)5. Installation of front door scuff plate RH (Refer to )
)6. Installation of front door opening trim weather strip RH (Refer to )
)7. Installation of battery ground terminal
